SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

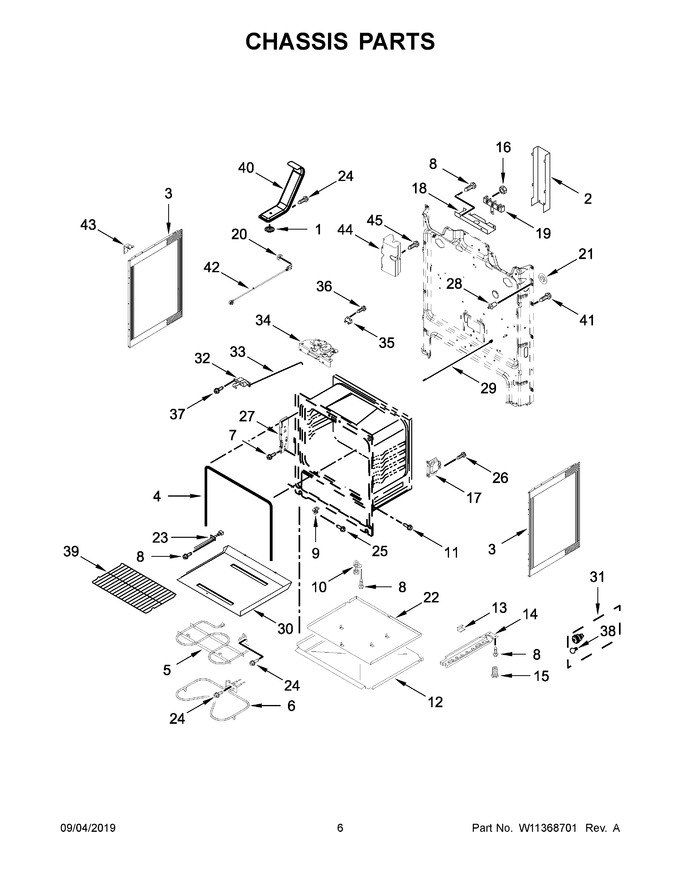

04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268772		Screen, Vent   (Replaces: W11092984)				$ 187.34
2	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 119.66
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 148.35
4	W11542153		Seal, Door   (Replaces: W10658354)			Immediately	$ 45.18
5	W10856603		Element, Broil   (Replaces: 9757340)			Immediately	$ 139.16
6	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 105.89
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
9	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 16.54
10	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 29.33
11	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
12	W10134121		Tray, Insulation				$ 38.36
13	W10137382		Clip, Panel			Immediately	$ 41.50
14	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 53.71
15	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
16	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 6.98
17	W10404688		Clip, Oven Support				$ 15.17
18	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
19	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 27.12
20	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
21	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
22	W10134125		Shield, Heat				$ 136.60
23	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
24	WP3196154		Screw   (Replaces: 3196154)				$ 7.04
25	W11684512		Screw   (Replaces: 3400080)				$ 12.69
26	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
27	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
28	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 130.00
29	9757239		Rod, Door Switch				$ 82.60
30	W10183712		Tray, Hidden Bake				$ 209.10
31	W11594027		Assembly, Light   (Replaces: W11175594)			Immediately	$ 78.31
32	WP9761013		Assembly, Door Latch (front)   (Replaces: 9761013)				$ 219.74
33	W10078380		Rod, Latch				$ 81.35
34	WPW10107840		Assembly, Latch (rear)   (Replaces: W10107840)			Immediately	$ 100.71
35	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
36	3196172		Screw			Immediately	$ 11.55
37	W11169708		Screw   (Replaces: 3196560)				$ 13.36
38	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
39	W11520287		Rack, Oven   (Replaces: W10268578)			Immediately	$ 42.16
40	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 225.43
41	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
42	W11226497		Cord, Power   (Replaces: W10624591)			Immediately	$ 65.69
43	W10183541		Clip, Spring Steel		Appelez-nous	-
44	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 131.81
45	W11135756		Screw   (Replaces: W11034869)				$ 12.63
14A	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 53.71
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 99.78
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11684918		Insulation, Flue   (Replaces: W10333344)			Immediately	$ 30.41
NI	W11684917		Insulation, Back   (Replaces: W11127324)				$ 106.60
NI	W10646923		Card, Insulator				$ 16.78
