01 - Cover Sheet
02 - Cooktop Parts

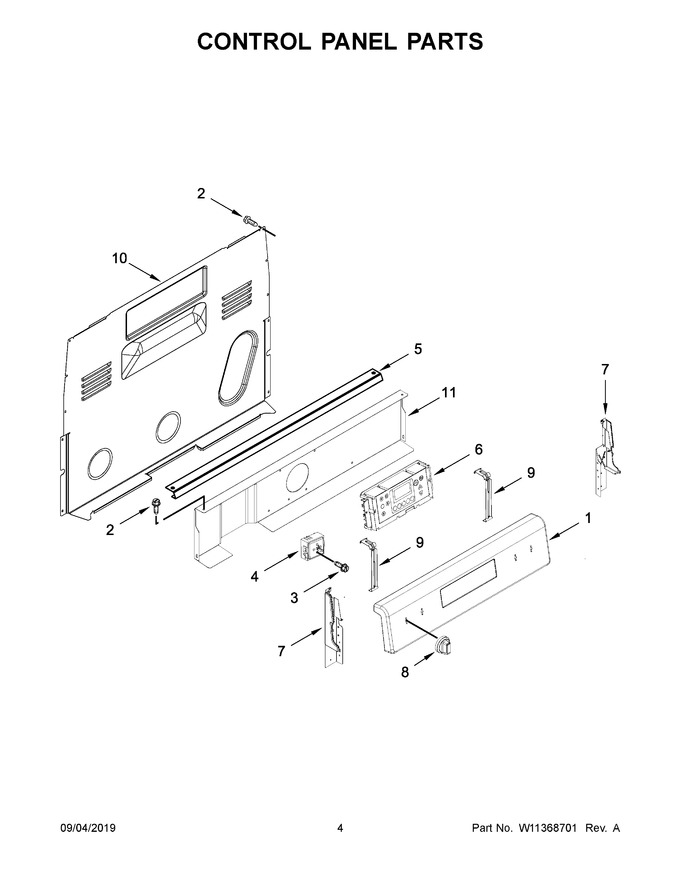

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11092070 | Console (black) (Replaces: W10885609) |
|
$ 462.73 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 6 | W11536811 | Board, Control (black) (Replaces: W11204510) |
|
$ 299.12 | |||||
| 7 | W11219664 | Endpost, Console (black (left)) (Replaces: W11130372) |
|
$ 131.85 | |||||
| 8 | W11092475 | Knob (black) (Replaces: W10892251) |
|
$ 150.87 | |||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 72.69 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 4A | 5500-287 | Switch, Infinite (left Rear & Right Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 4B | WP3149400 | Switch, Infinite (orange) (right Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 7A | W11219665 | Endpost, Console (black (right)) (Replaces: W11130379) |
|
$ 36.40 |
