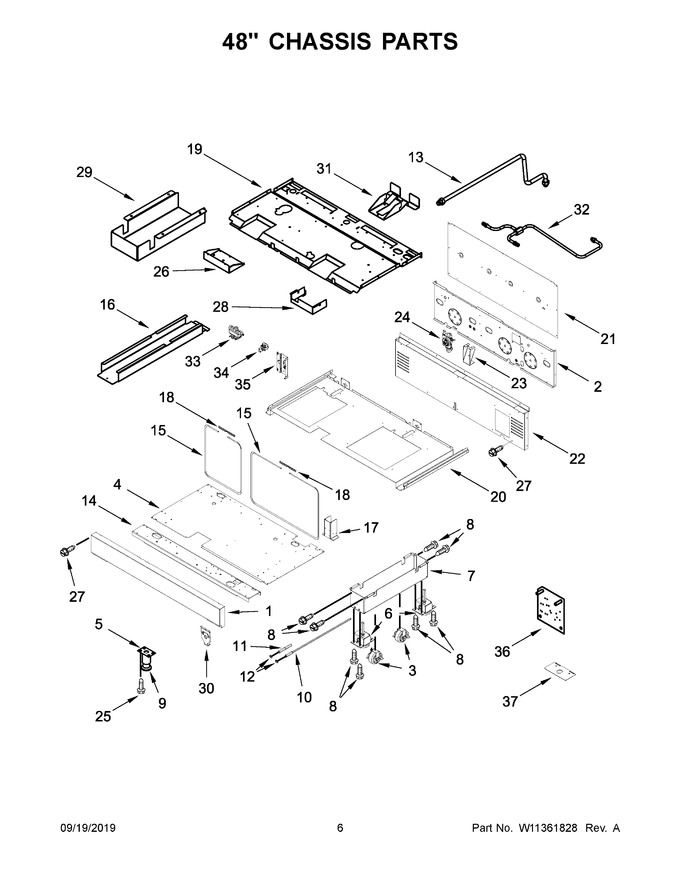

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11317946 | Kickplate (Replaces: W10883797) |
|
$ 338.55 | |||||
| 2 | W11320542 | Back, Chassis (Replaces: W11105913) |
|
- | |||||
| 3 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 38.86 | |||||
| 4 | W11320536 | Duct, Bottom (48") (Replaces: W11110260) |
|
- | |||||
| 5 | WP9759118 | Plate, Mounting (Replaces: 9759118) |
|
$ 132.80 | |||||
| 6 | W10859931 | Leveler (Replaces: 9760860) |
|
$ 101.59 | |||||
| 7 | W10908710 | Base, Leveling Leg |
|
$ 122.45 | |||||
| 8 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 9 | WP9759117 | Foot, Dual Fuel (Replaces: 9759117) |
|
$ 127.42 | |||||
| 10 | W10115869 | Shaft, Long |
|
Immediately | $ 93.74 | ||||
| 11 | W10115793 | Shaft, Short |
|
$ 65.00 | |||||
| 12 | 489504 | E-ring |
|
$ 6.35 | |||||
| 13 | W11364214 | Tube, Pressure Regulator (Replaces: W11181648) |
|
$ 96.53 | |||||
| 14 | W11320602 | Support, Channel (Replaces: W11087494) |
|
- | |||||
| 15 | W11675844 | Gasket, Oven (30") (Replaces: W11115328) |
|
Immediately | $ 62.78 | ||||
| 16 | W11050145 | Duct-chassis, Rear |
|
- | |||||
| 17 | W10115819 | Column, Central |
|
- | |||||
| 18 | W11362015 | Retainer, Gasket (9" Long) |
|
$ 135.59 | |||||
| 19 | W11320544 | Top, Chassis (Replaces: W11037132) |
|
- | |||||
| 20 | W11320545 | Chassis, Bottom (Replaces: W11040800) |
|
- | |||||
| 21 | W11320600 | Panel, Back Top (Replaces: W11103335) |
|
- | |||||
| 22 | W11320599 | Panel, Back Bottom (Replaces: W11034123) |
|
- | |||||
| 23 | W11320155 | Bracket, Pressure Regulator (Replaces: W11096823) |
|
- | |||||
| 24 | W11193822 | Regulator, Pressure (Replaces: W10896959) |
|
$ 255.06 | |||||
| 25 | 3400518 | Screw |
|
$ 11.68 | |||||
| 26 | W11320147 | Drawer, Appliance Manager (Replaces: W11106341) |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 28 | W11106335 | Cabinet, Appliance Manager |
|
- | |||||
| 29 | W11320146 | Channel, Wire (Replaces: W11084360) |
|
- | |||||
| 30 | W11318207 | Spring Clip, Range (Replaces: W11036559) |
|
$ 11.04 | |||||
| 31 | W11190223 | Bracket, Bake Alignment |
|
$ 70.97 | |||||
| 32 | W11355235 | Tube, Valve (double) (Replaces: W11112366) |
|
$ 162.45 | |||||
| 33 | W11239228 | Valve, Dual (Replaces: W10145680) |
|
Immediately | $ 288.82 | ||||
| 34 | W10311268 | Valve, Single |
|
Immediately | $ 316.81 | ||||
| 35 | W10145362 | Bracket-board, Dsi |
|
$ 69.71 | |||||
| 36 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 215.63 | ||||
| 37 | W10115855 | Holder, Strain Relief |
|
- | |||||
| 15A | W11115326 | Gasket, Oven (18") |
|
Immediately | $ 172.51 |
