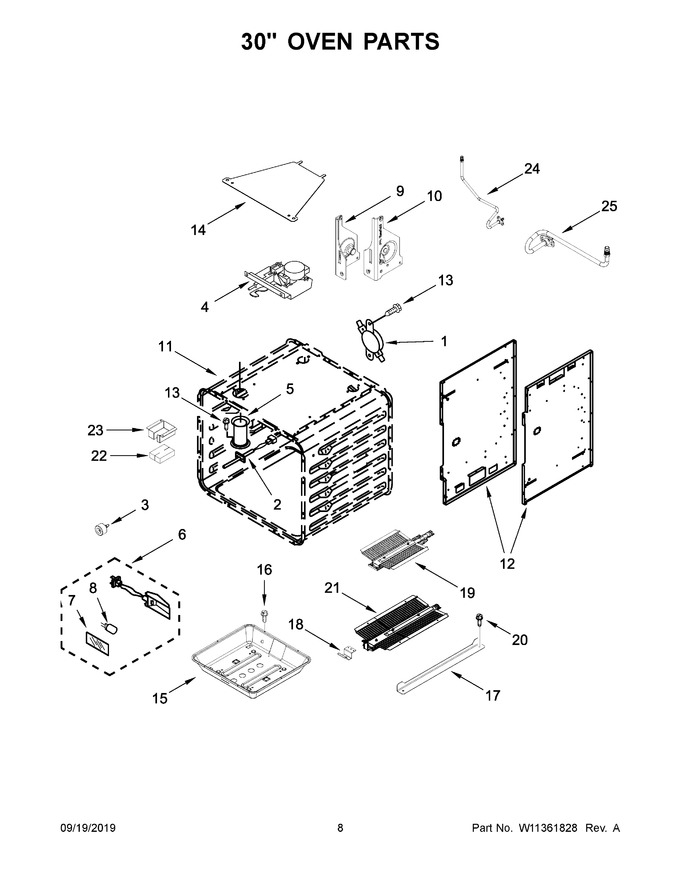

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4450249 | Thermostat (tod) (Replaces: 4450249) |
|
Immediately | $ 181.29 | ||||
| 2 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 120.45 | ||||
| 3 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 9.44 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 280.85 | ||||
| 5 | W10145743 | Tube, Vent |
|
- | |||||
| 6 | W11233684 | Assembly, Oven Light (Replaces: W11223932) |
|
$ 95.43 | |||||
| 7 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 9 | W11096294 | Receiver, Hinge (left) |
|
- | |||||
| 10 | W11096293 | Receiver, Hinge (right) |
|
- | |||||
| 11 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 12 | W11320145 | Chassis, Side (left) (Replaces: W11102297) |
|
$ 206.69 | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 14 | W10160858 | Cover, Latch |
|
$ 65.95 | |||||
| 15 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 183.56 | |||||
| 16 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 9.96 | |||||
| 17 | W10317437 | Bracket, Broil Standoff |
|
- | |||||
| 18 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 19 | W11643161 | Burner, Bake (Replaces: W10878504) |
|
Immediately | $ 157.97 | ||||
| 20 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 21 | W11661180 | Burner, Broil (Replaces: W10311335) |
|
$ 148.96 | |||||
| 22 | W11688851 | Insulation, Broil Cover (Replaces: W10311009) |
|
- | |||||
| 23 | W10310985 | Cover, Broil |
|
- | |||||
| 24 | W11355244 | Tube, Broil (Replaces: W11109238) |
|
$ 159.08 | |||||
| 25 | W11355919 | Tube, Bake (Replaces: W11106980) |
|
Immediately | $ 153.47 | ||||
| 12A | W11320144 | Chassis, Side (right) (Replaces: W11102296) |
|
$ 199.72 | |||||
| NI | W11684890 | Insulation, Bottom (Replaces: W10299354) |
|
- | |||||
| NI | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.01 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11661177 | Insulation, Wrap, 30 (Replaces: W10282810) |
|
$ 139.28 | |||||
| NI | W11688580 | Insulation, Back, 30 (Replaces: W10299350) |
|
- |
