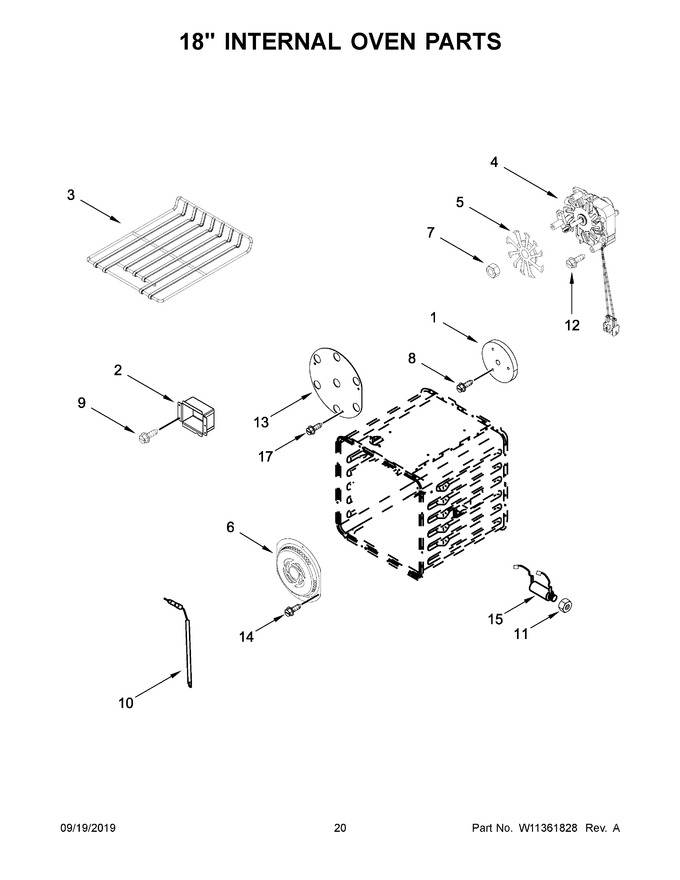

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 23.23 | ||||
| 2 | W10308051 | Box, Broil |
|
- | |||||
| 3 | W11111351 | Rack, Oven (18") |
|
$ 134.70 | |||||
| 4 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 284.83 | ||||
| 5 | W11320150 | Blade, Fan (Replaces: W11108376) |
|
$ 293.69 | |||||
| 6 | W11113808 | Cover, Fan |
|
- | |||||
| 7 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.26 | |||||
| 8 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 10 | W11355922 | Electrode, Bake (Replaces: W11205400) |
|
Immediately | $ 60.17 | ||||
| 11 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 11.55 | |||||
| 12 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.67 | |||||
| 13 | W10261523 | Plate, Fan |
|
$ 66.73 | |||||
| 14 | W10739592 | Screw |
|
- | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 |
