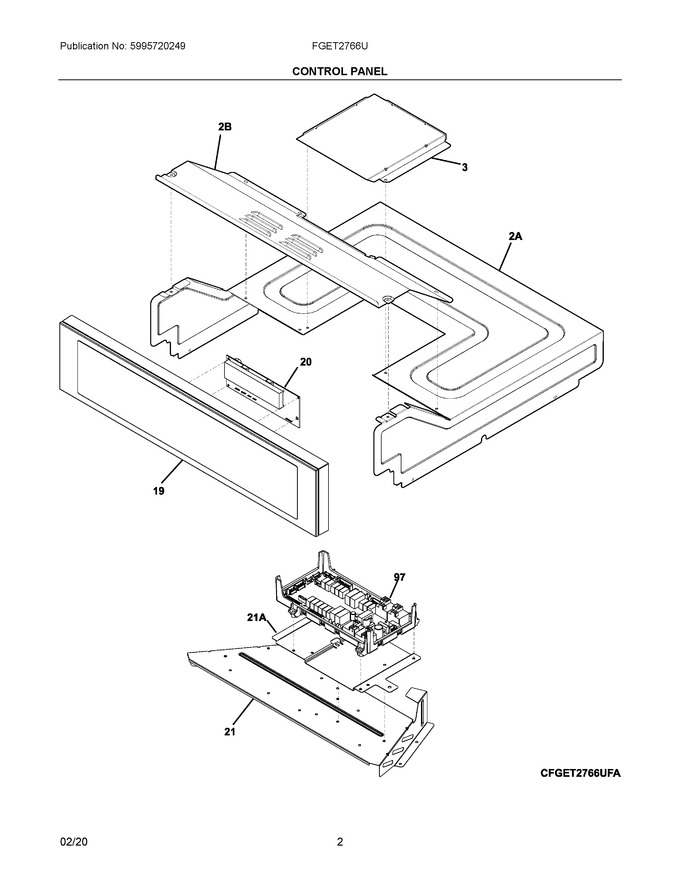

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577801		Box, Fan Service		Appelez-nous	-
19	5304514980		Control Panel, Assembly, Black Stainless		Appelez-nous	-
20	316474947		Controller, Electronic, Mars		Appelez-nous	-
21	139028002		Bracket, Mounting   (Replaces: 139028001)				$ 38.37
97	316475806		Board Assembly, Ovc2 Pcba, W/chassis			Immediately	$ 641.99
21A	809191301		Bracket, Ovc Board Mtg.		Appelez-nous	-
2A	139003601		Cover, Oven Top		Appelez-nous	-
2B	139003701		Cover, Control Access				$ 33.31
NI	3201861		Screw, 6 X 0.375, (4)				$ 0.76
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304514831		Harness, Grounding Wire				$ 11.38
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 51.57
NI	5304523462		Harness, Wiring, Communication, Control Panel				$ 24.26
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 17.72

    View Diagram in Separate Window       Print Part List
