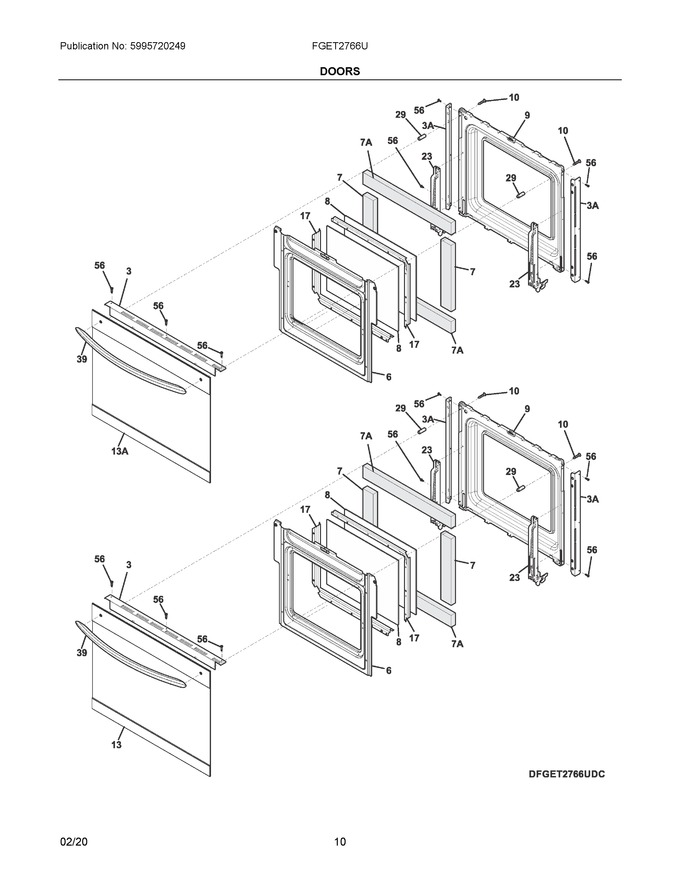

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023605		Trim, Oven Door, Black, Upper				$ 54.60
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085802		Glass, Door, Inner, (2), Shr		Appelez-nous	-
9	139002905		Liner, Oven Door			Immediately	$ 110.73
10	5304507924		Screw, Loctite, #10-24x1.94, (2)			Immediately	$ 16.48
13	5304514946		Door Assembly, Outer, Black Stainless, W/trim				$ 320.36
17	318264735		Spacer, Glass, (2)				$ 64.49
23	316575952		Hinge, Oven Door, Grey				$ 66.74
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	318919604		Handle, Door, Black Stainless		Appelez-nous	-
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
13A	5304514946		Door Assembly, Outer, Black Stainless, Upper Oven, W/trim   (Replaces: 5304514945)				$ 320.36
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 5303323168)				$ 31.36
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
