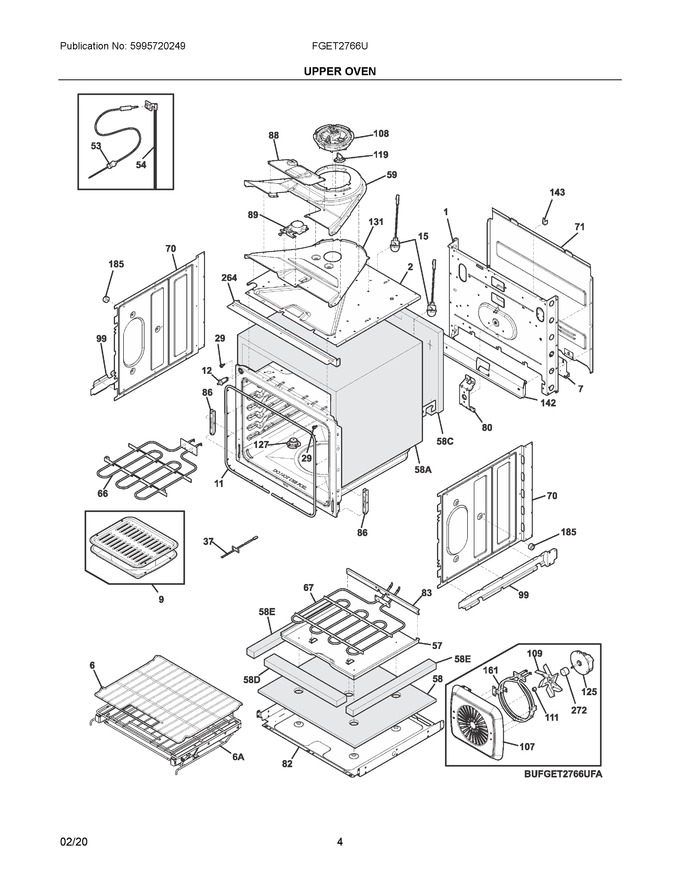

03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506958		Panel, Main Back		Appelez-nous	-
2	139027804		Shield, Insulation, Top		Appelez-nous	-
6	5304514984		Rack, Oven, W/handle			Immediately	$ 77.19
7	5304506960		Panel, Service, Main Back		Appelez-nous	-
9	5304494997		Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessoryoptional Access0ry				$ 72.01
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
53	5304503737		Probe, Meat, Black   (Replaces: 5304516490)				$ 99.33
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 5304514886)			Immediately	$ 153.09
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
66	140123969028		Element, Broil, 6 Pass, 4000w   (Replaces: 5304514924)		Appelez-nous	-
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 55.23
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	5304506947		Shield, Insulation, Lower		Appelez-nous	-
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 24.10
89	5304528835		Motor, Latch Assy., 2 Terminals   (Replaces: 139021303)			Immediately	$ 74.12
99	139005201		Bracket, Support, Side, (2)		Appelez-nous	-
107	139013903		Cover, Convection Fan				$ 46.86
108	807123003		Motor Assembly, Fan		Appelez-nous	-
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578505		Thermostat, Safety, 115c		Appelez-nous	-
125	139008504		Motor, Convection Fan, 2 Speed			Immediately	$ 170.57
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	5304506953		Sheild, Air Deflector, Back		Appelez-nous	-
143	318172904		Bracket, Wire Support		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
272	139021700		Tube, Convection Fan				$ 17.72
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
6A	140304432010		Rack Assembly, Gliding, Nickel, W/handle   (Replaces: 5304518865)		Appelez-nous	-
86A	318561100		Receptacle, Hinge, (2)				$ 21.23
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5304514908		Harness, Convection				$ 57.64
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIA	5304514915		Harness, Wiring, Mdl, Upper		Appelez-nous	-
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIB	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
