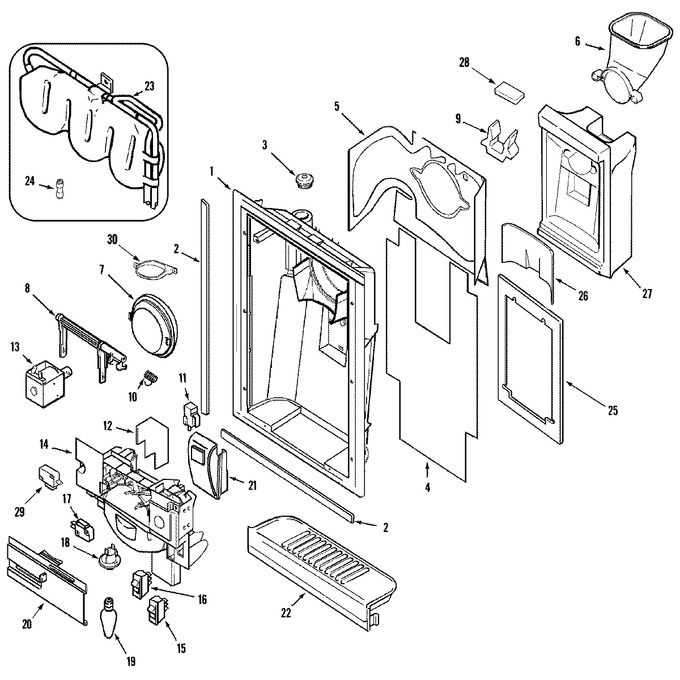

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003307		Screw	13	Appelez-nous	-
1	61004675		Housing, Fountain (wht)	13	Appelez-nous	-
1	489392		Screw   (Replaces: 415013-35)	13			$ 12.02
2	61003286		Tape (1ft.)	13			$ 7.25
3	61003300		Grommet, Water Tube	13	Appelez-nous	-
4	61003304		Foil, Ftn. Back	13			$ 5.59
5	61003613		Heater, Fountain	13	Appelez-nous	-
6	61004677		Chute, Ice	13			$ 22.17
6	489392		Screw   (Replaces: 415013-35)	13			$ 12.02
7	WP61005883		Assy., Ice Door   (Replaces: 61005883)	13			$ 26.76
8	61005886		Strike, Ice Door	13			$ 5.65
9	61003308		Insulation	13			$ 26.45
10	61004388		Spring, Ftn. Return	13			$ 7.72
11	61005520		Switch, Limit	13			$ 21.62
11	415041-35		Screw	13	Appelez-nous	-
12	61003621		Board, Delay	13	Appelez-nous	-
13	61005885		Solenoid	13	Appelez-nous	-
13	WP488234		Screw   (Replaces: 61003297)	13			$ 6.07
14	489392		Screw   (Replaces: 415013-35)	13			$ 12.02
14	61003615		Bracket, Fountain (wht)	13	Appelez-nous	-
15	61003289		Plug, Hole (fills Switch Hole)	13	Appelez-nous	-
16	61003290		Switch, Light	13	Appelez-nous	-
17	55440-3		Switch	13	Appelez-nous	-
17	415041-35		Screw	13	Appelez-nous	-
18	61005900		Receptacle, Bulb	13	Appelez-nous	-
18	61006108		Adapter, Receptacle	13	Appelez-nous	-
19	61006109		Bulb, Light	13			$ 5.01
20	61004052		Screw	13	Appelez-nous	-
20	61005064		Selector, Slide (wht)	13	Appelez-nous	-
21	61003802		Pad, Actuator (gry)	13	Appelez-nous	-
22	61003309		Grill (wht)	13			$ 30.31
23	61003306		Tank Assy., Water	13	Appelez-nous	-
23	WP489478		Screw   (Replaces: 400017-1)	13			$ 6.98
24	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61005808)	13		Immediately	$ 26.15
25	61003339		Insulation	13			$ 5.27
26	61003340		Insulation	13			$ 20.38
27	61005373		Insulation, Ftn. (styrofoam)	13	Appelez-nous	-
28	61003343		Insulation	13			$ 5.51
29	55440-1		Switch, Crusher	13	Appelez-nous	-
29	415041-35		Screw	13	Appelez-nous	-
30	67001880		Guard, Chip (wht)	13	Appelez-nous	-
30	67001970		Screw	13			$ 10.37
NI	61003676		Wire Harness, Ftn. Slide	13	Appelez-nous	-
NI	61003675		Wire Harness, Ftn. Switches	13	Appelez-nous	-
