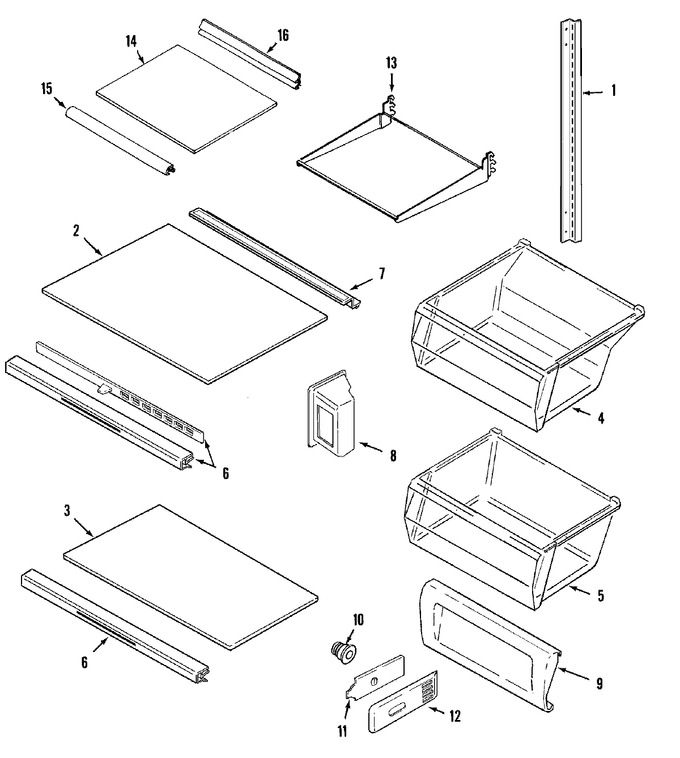

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 400017-1)	13			$ 6.98
1	61003240		Rail, Shelf Support	13	Appelez-nous	-
2	61003241		Glass, Crisper Shelf	13			$ 91.34
3	61003157		Glass, Meat Shelf	13	Appelez-nous	-
4	61006110		Pan, Crisper	13			$ 89.00
5	61006111		Pan, Meat	13			$ 74.68
6	61003524		Trim, Shelf (crisper)	13	Appelez-nous	-
6	61003162		Trim	13	Appelez-nous	-
7	61003161		Seal, Crisper Shelf (rear)	13	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61006081)	13			$ 80.27
9	61003665		Front, Crisper Pan	13	Appelez-nous	-
9	61003666		Front, Meat Pan	13	Appelez-nous	-
10	53726-2		Tunnel, Air (meat)	13	Appelez-nous	-
11	61003249		Slide, Control (meat)	13	Appelez-nous	-
12	61003250		Retainer, Control Slide	13	Appelez-nous	-
13	61003246		Frame, Shelf	13	Appelez-nous	-
14	61003247		Glass, Shelf	13	Appelez-nous	-
15	61003245		Trim, Shelf	13	Appelez-nous	-
16	61003244		Trim, Shelf	13	Appelez-nous	-
