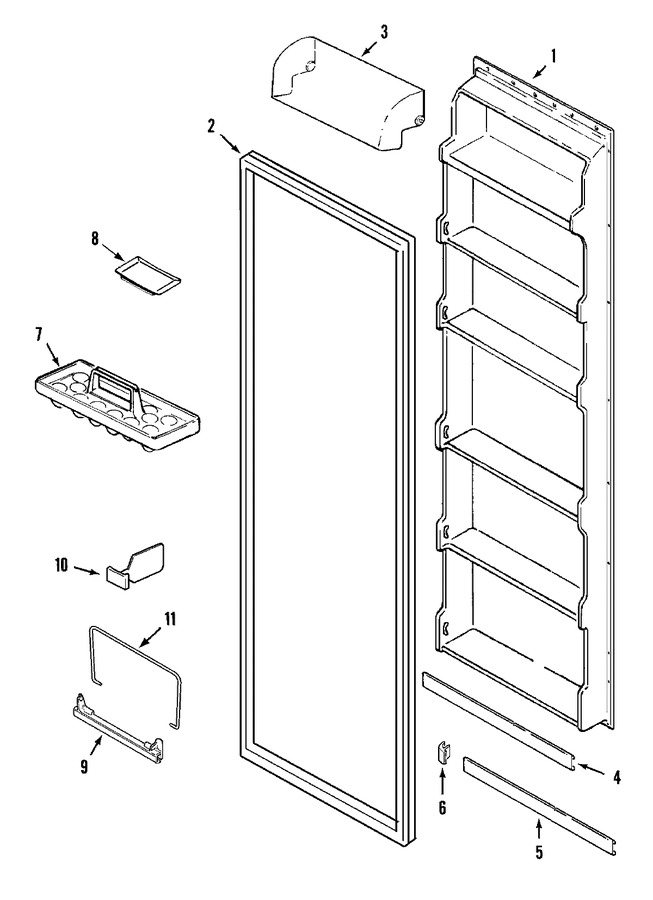

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003179		Liner, F.f. Door	13	Appelez-nous	-
1	61005388		Screw	13			$ 11.43
2	61006011		Seal, F.f. Door (wht)	13			$ 182.86
3	61003546		Door, Dairy	13	Appelez-nous	-
4	61003182		Trim, Door Shelf	13	Appelez-nous	-
5	61003547		Trim, Door Shelf	13	Appelez-nous	-
6	61003279		End Cap, Shelf Trim (lt)	13	Appelez-nous	-
6	61003280		End Cap, Shelf Trim (rt)	13	Appelez-nous	-
7	60066-1		Tray, Egg	13	Appelez-nous	-
8	29936-2		Tray, Butter	13	Appelez-nous	-
9	61005237		Retainer, Bottle	13	Appelez-nous	-
10	61003098		Organizer, Shelf	13	Appelez-nous	-
11	61004926		Retainer, Wire	13	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
