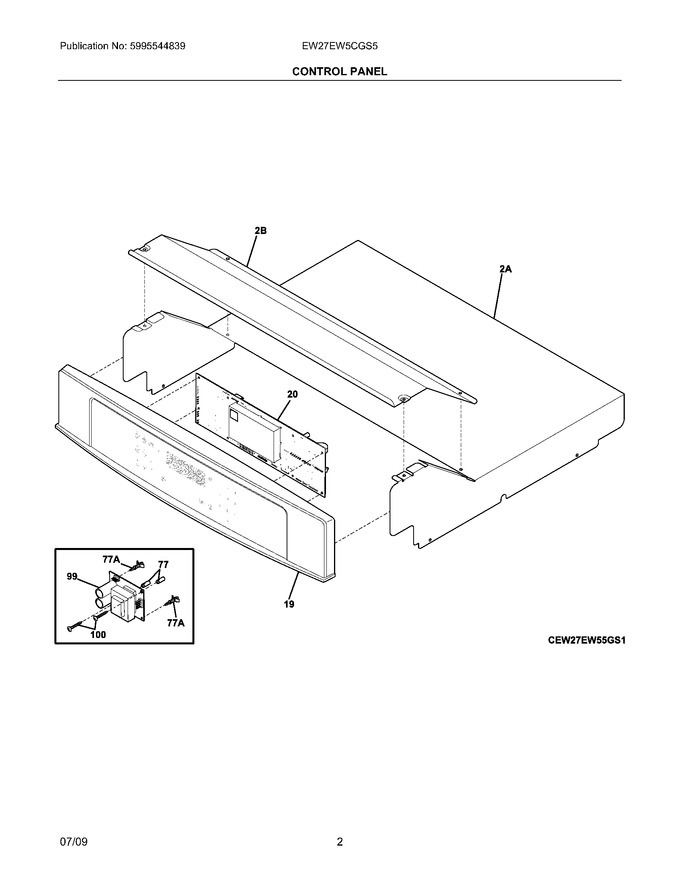

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	7318366216		Control Panel Assembly,glass ,black/stainless,w/touch & Trim		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
100	75304400427		Screw,6-20 X 1/2 ,(2)		Appelez-nous	-
2A	7318257301		Shield,oven Top		Appelez-nous	-
2B	7318260101		Cover,box		Appelez-nous	-
77A	7316114100		Spacer		Appelez-nous	-
F20	7316516537		Controller,electronic ,es560w1		Appelez-nous	-
F99	316535200		Board,power Supply ,8v ,(2)   (Replaces: 7316535200)				$ 408.36
FNI	7318532112		Harness,wiring ,communication ,10 Connectors		Appelez-nous	-
FNI	7318532116		Harness,wiring ,communication ,11 Connectors		Appelez-nous	-
NI	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
NI	7316524400		Screw,control Mtg ,6-32 X .25 ,(5)		Appelez-nous	-
