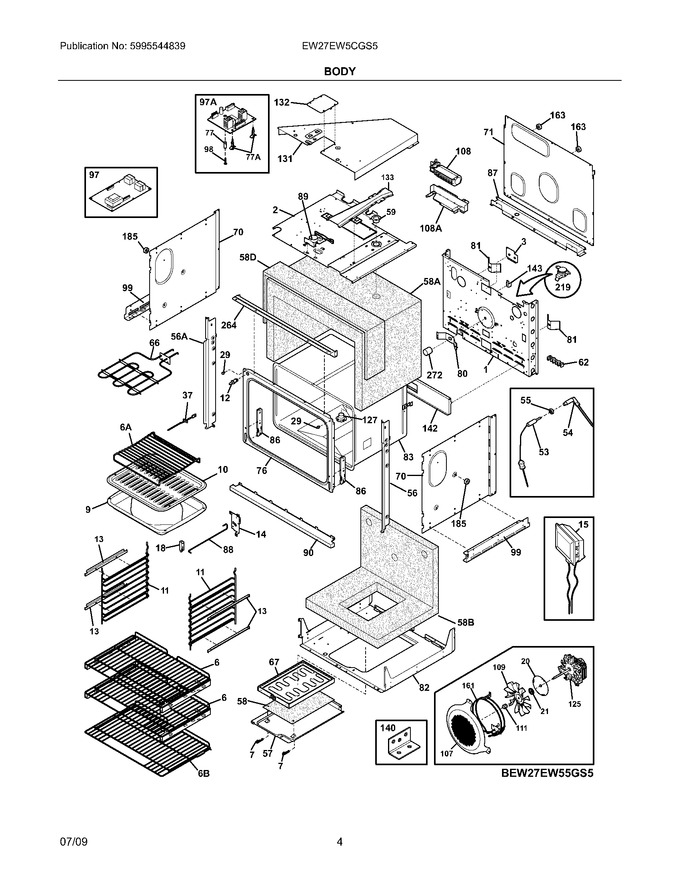

05 - Body
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7318259213 | Back,main |
|
- | |||||
| 2 | 7318258920 | Shield,insulation ,upper |
|
- | |||||
| 3 | 7318402800 | Plate,cover |
|
- | |||||
| 6 | 7318903104 | Shelf,oven ,(2) |
|
- | |||||
| 7 | 7318368300 | Pin,locking ,(2) |
|
- | |||||
| 9 | 7318138801 | Pan,broiler |
|
- | |||||
| 10 | 7318126401 | Insert,broiler Pan |
|
- | |||||
| 11 | 7318903300 | Rack,oven Shelf ,(2) |
|
- | |||||
| 12 | 808136601 | Switch,oven Light ,door Frame (Replaces: 7316445501) |
|
Immediately | $ 44.04 | ||||
| 13 | 7318603913 | Bracket,ladder Mtg. ,(4) |
|
- | |||||
| 15 | 7318241006 | Lamp,oven ,(2) ,halogen |
|
- | |||||
| 18 | 7318562300 | Bracket,rod |
|
- | |||||
| 20 | 7318389400 | Plate,retainer |
|
- | |||||
| 21 | 7318389000 | Seal,ring |
|
- | |||||
| 29 | 316517600 | Spacer,oven Door (Replaces: 7316517600) |
|
$ 12.05 | |||||
| 55 | 7316247700 | Nut,mounting |
|
- | |||||
| 56 | 7318903706 | Trim,side ,stainless ,rh |
|
- | |||||
| 57 | 7318902701 | Panel,service |
|
- | |||||
| 58 | 7318330503 | Insulation,service Panel |
|
- | |||||
| 59 | 7318072577 | Duct,oven Vent |
|
- | |||||
| 62 | 7316056000 | Terminal Block |
|
- | |||||
| 70 | 7318259102 | Shield,insulation ,sides ,(2) |
|
- | |||||
| 71 | 7318260001 | Panel,rear Box |
|
- | |||||
| 76 | 7318056227 | Front,oven |
|
- | |||||
| 77 | 7316247900 | Spacer,power Board |
|
- | |||||
| 80 | 75303320846 | Plate,oven Mtg |
|
- | |||||
| 81 | 7318192400 | Spring,oven |
|
- | |||||
| 82 | 7318258720 | Shield,insulation ,lower |
|
- | |||||
| 83 | 7318261506 | Liner,oven Assy |
|
- | |||||
| 86 | 7316508600 | Receptacle,hinge ,(2) |
|
- | |||||
| 87 | 7318260601 | Bracket,cable Mtg. |
|
- | |||||
| 88 | 7318376505 | Rod,latch |
|
- | |||||
| 90 | 7318903504 | Trim,oven Bottom ,stainless |
|
- | |||||
| 98 | 75303297477 | Screw,6-20 X 1 1/4 |
|
- | |||||
| 99 | 7318256201 | Bracket,side ,bottom ,(2) |
|
- | |||||
| 107 | 7318906601 | Cover,fan |
|
- | |||||
| 109 | 318398302 | Fan Blade (Replaces: 7318398300) |
|
Immediately | $ 29.11 | ||||
| 111 | 7318399800 | Nut-fan Retainer |
|
- | |||||
| 127 | 7318357001 | Adapter Assembly,w/vent Tube ,and Catalyst |
|
- | |||||
| 131 | 7318272901 | Box,vent |
|
- | |||||
| 132 | 7318003000 | Plate,shield |
|
- | |||||
| 133 | 7318347800 | Chimney |
|
- | |||||
| 140 | 7318399310 | Bracket,holding |
|
- | |||||
| 142 | 7318123910 | Deflector |
|
- | |||||
| 143 | 7318172904 | Support,wire |
|
- | |||||
| 163 | 7318531703 | Spacer,(4) |
|
- | |||||
| 185 | 7318531800 | Spacer,oven Shield ,(2) |
|
- | |||||
| 264 | 7318257721 | Trim,oven ,black ,front |
|
- | |||||
| 272 | 7318249409 | Tube,protector |
|
- | |||||
| 56A | 7318903707 | Trim,side ,stainless ,lh |
|
- | |||||
| 58A | 7318386110 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 7318330510 | Insulation,back & Bottom ,oven |
|
- | |||||
| 58D | 7318372006 | Insulation,1/2`` Thick ,43 X 9.5 |
|
- | |||||
| 6A | 7318365800 | Rack,broiler Pan |
|
- | |||||
| 6B | 7318908002 | Shelf,oven |
|
- | |||||
| 77A | 7316114100 | Spacer |
|
- | |||||
| F108 | 7318251300 | Bracket,fan Support |
|
- | |||||
| F108 | 318073028 | Motor,blower (Replaces: 7318073028) |
|
$ 271.69 | |||||
| F125 | 5304467898 | Motor,fan (Replaces: 7318398200) |
|
Immediately | $ 225.67 | ||||
| F14 | 318562200 | Sensor Assy,w/switch ,and Bracket (Replaces: 7318562200) |
|
$ 257.99 | |||||
| F161 | 7318255506 | Element,convection ,2500 W |
|
- | |||||
| F219 | 318004902 | Switch,thermal (Replaces: 7318004902) |
|
Immediately | $ 71.44 | ||||
| F37 | 316217002 | Probe,oven Temp (Replaces: 7316217002) |
|
Immediately | $ 61.23 | ||||
| F53 | 5304504202 | Probe,meat Temp (Replaces: 7318601302) |
|
Immediately | $ 106.19 | ||||
| F54 | 318601206 | Receptacle,probe (Replaces: 7318601206) |
|
Immediately | $ 171.52 | ||||
| F66 | 7318255604 | Element,broil ,3400w |
|
- | |||||
| F67 | 318902502 | Element,hidden Bake ,1450w |
|
Immediately | $ 205.21 | ||||
| F89 | 7318261217 | Motor,latch Assy |
|
- | |||||
| F97 | 316443918 | Board,relay (Replaces: 7316443918) |
|
Immediately | $ 406.62 | ||||
| F97A | 316519200 | Board,variable Speed (Replaces: 7316519200) |
|
Immediately | $ 256.24 | ||||
| FNI | 7318370389 | Wiring Harness,main |
|
- | |||||
| FNI | 7318370371 | Wiring Harness,door Switch ,and Latch Mtr |
|
- | |||||
| FNI | 7318394441 | Box & Wires Assy |
|
- | |||||
| FNI | 7318231838 | Wiring Harness,bake Element |
|
- | |||||
| NI | 75303300265 | Screw,8-18 X 1/2 ,silver ,(4) |
|
- | |||||
| NI | 7318373001 | Bracket,receptacle ,temp Probe |
|
- | |||||
| NI | 75303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 75303324184 | Screw,8-18 X 5/16 ,black ,(4) |
|
- | |||||
| NI | 75303325981 | Screw, 10-16 X 1 1/2 |
|
- | |||||
| NI | 75303311306 | Screw,8-18 X 0.375 ,(6) |
|
- | |||||
| NI | 75304461333 | Screw,10-32 X 17/32 |
|
- | |||||
| NI | 7318341201 | Jumper,electronic ,rack Sensor |
|
- | |||||
| NI | 75304456367 | Rivet,ladder Bracket ,(8) |
|
- | |||||
| NI | 75303323136 | Screw Ground |
|
- | |||||
| NI | 75303323139 | Screw,10-24 X 0.906 |
|
- | |||||
| NI | 75303323277 | Screw,8-18 X 13/32 |
|
- | |||||
| NI | 75304436875 | Screw,8-18 X 1/2 ,black |
|
- | |||||
| NI | 7318165800 | Spacer |
|
- | |||||
| NI | 75303323144 | Nut,10-32 |
|
- | |||||
| NI | 75304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 75303211311 | Screw,8 X 0.500 |
|
- | |||||
| NI | 75303323130 | Screw,8 X 1/4 ,(6) |
|
- | |||||
| NI | 75304435874 | Plate,covering ,probe |
|
- |
