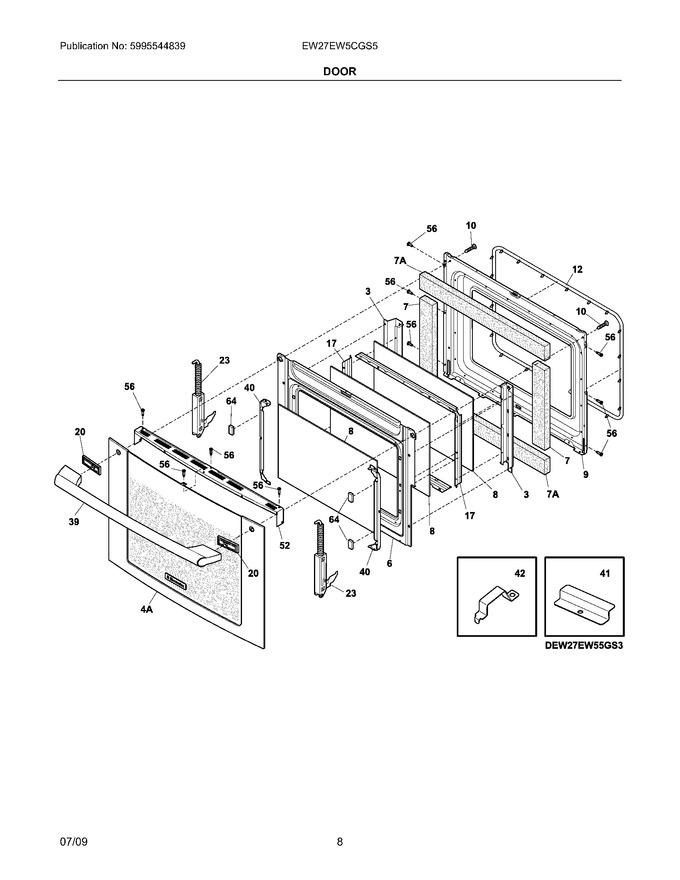

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7318902200		Bracket,insulation ,(2)		Appelez-nous	-
6	7318901000		Deflector,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 7318372000)				$ 16.30
8	7318212200		Glass,oven Door ,heat Barrier		Appelez-nous	-
9	7318900805		Liner,oven Door		Appelez-nous	-
10	75303323139		Screw,10-24 X 0.906		Appelez-nous	-
12	7318053136		Gasket,oven Door Seal		Appelez-nous	-
17	7318264701		Spacer,glass ,(2)		Appelez-nous	-
20	7318902902		Spacer,handle ,grey ,(2)		Appelez-nous	-
23	7318900600		Hinge,oven Door		Appelez-nous	-
39	7241881303		Handle,door ,stainless		Appelez-nous	-
40	7318242702		Bracket,glass Holder ,door ,(2)		Appelez-nous	-
41	7318370600		Bracket,glass Retainer ,(2)		Appelez-nous	-
42	7318382301		Bracket,glass Retainer ,(4)		Appelez-nous	-
52	7318901601		Trim,door ,black ,upper		Appelez-nous	-
56	75304462581		Screw,8-32 X 5/16		Appelez-nous	-
64	7318165800		Spacer		Appelez-nous	-
4A	7318299502		Glass Assy.,door ,black/stainless ,outer,w/trim & Label		Appelez-nous	-
7A	7318372001		Insulation,door ,20.5 X 2.375 ,(2)		Appelez-nous	-
NI	7318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	75304461333		Screw,10-32 X 17/32		Appelez-nous	-
NI	7318163602		Cleaner,stainless Steel		Appelez-nous	-
NI	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
