SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

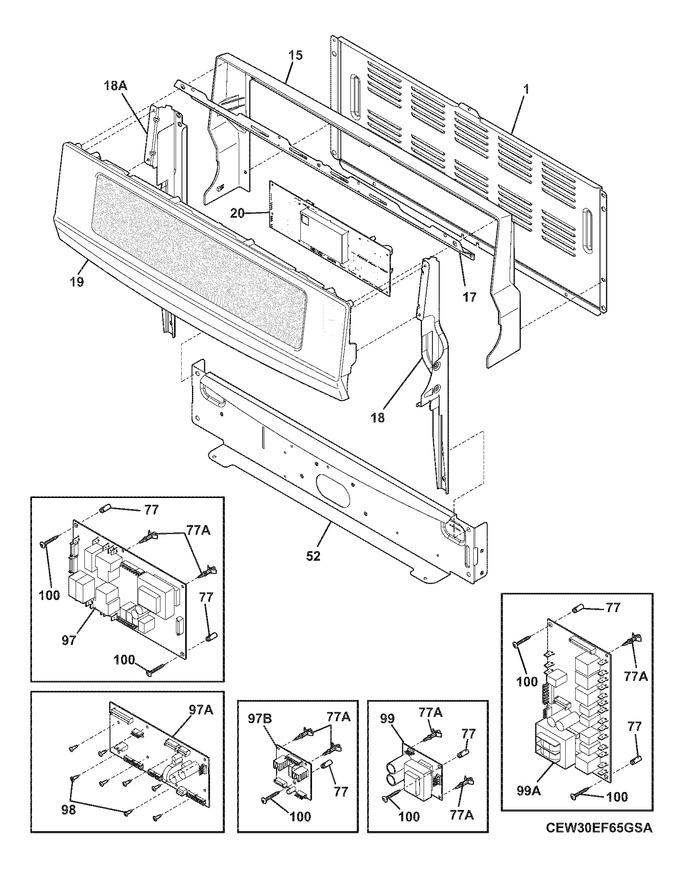

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7316500100		Shield,rear Wall		Appelez-nous	-
15	7316500402		Wrapper,backguard ,stainless		Appelez-nous	-
17	7316500301		Shield,upper ,backguard		Appelez-nous	-
18	7316526000		Channel,support ,rh ,backguard		Appelez-nous	-
52	7316509801		Shield,backguard ,black ,inner		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
98	7316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)		Appelez-nous	-
100	75303289910		Screw,8a ,1`` ,(7) ,power Board Mtg		Appelez-nous	-
18A	7316526001		Channel,support ,lh ,backguard		Appelez-nous	-
77A	7316114100		Spacer,(4)		Appelez-nous	-
F19	7316538402		Control Panel Assembly,user Interface ,w/ss Trim		Appelez-nous	-
F20	316576600		Controller,electronic ,es630a   (Replaces: 7316516510)				$ 417.56
F97	316443920		Board,relay ,oven Control   (Replaces: 7316443920)			Immediately	$ 403.75
F97A	316576410		Board,power ,uib   (Replaces: 7316516610)			Immediately	$ 271.77
F97B	316519200		Board,variable Speed   (Replaces: 7316519200)			Immediately	$ 256.24
F99	316535200		Board,power Supply ,8v ,(2)   (Replaces: 7316535200)				$ 408.36
F99A	316442120		Board,power ,relay   (Replaces: 7316442115)			Immediately	$ 309.84
FNI	7316525610		Harness,wiring ,relay Board To ,user Interface		Appelez-nous	-
FNI	7316525601		Harness,wiring ,control To ,relay Board		Appelez-nous	-
NI	7316021109		Screw,8-18 X 0.5 ,chrome		Appelez-nous	-
NI	7316524400		Screw,control Mtg ,6-32 X .25 ,(5)		Appelez-nous	-
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
