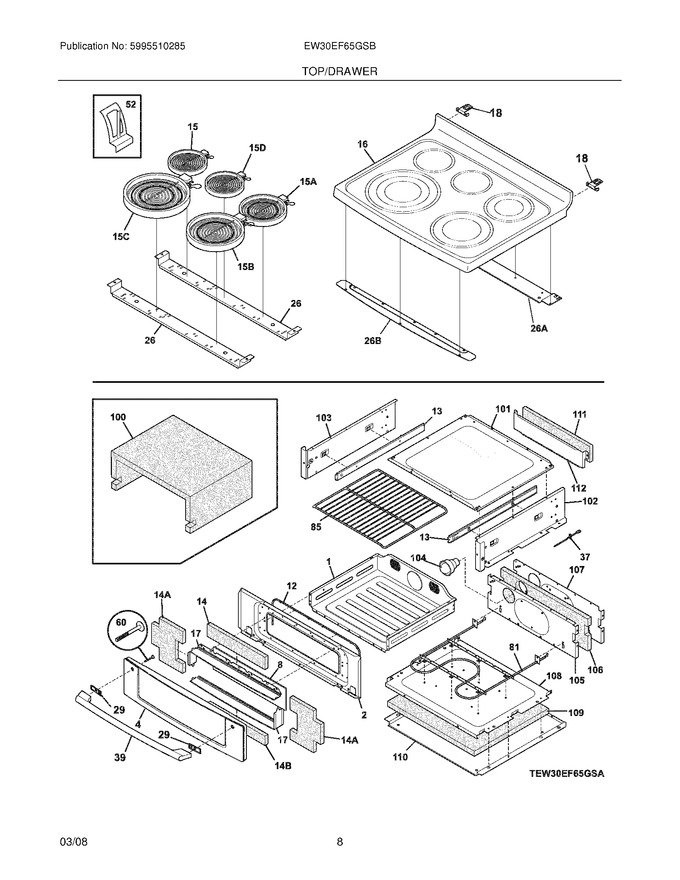

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7316414106		Drawer,mini Oven ,cobalt		Appelez-nous	-
2	7316510201		Liner,drawer ,cobalt ,mini Oven		Appelez-nous	-
4	7316538202		Panel Assembly,drawer Glass ,outer ,w/trim & Tape		Appelez-nous	-
8	7316431901		Glass,inner Door ,mini Oven		Appelez-nous	-
12	7316410700		Seal,door ,mini Oven		Appelez-nous	-
13	7316449801		Glide,drawer ,mini Oven ,(2)		Appelez-nous	-
14	7316414202		Insulation,door Top ,mini Oven		Appelez-nous	-
16	7316470631		Main Top Assembly,glass/steel ,black/stainless		Appelez-nous	-
17	7316508101		Spacer,glass ,(2)		Appelez-nous	-
18	7316436600		Hinge Bracket,maintop ,(2)		Appelez-nous	-
26	7316427601		Channel,element Support ,(2)		Appelez-nous	-
29	7316505401		Spacer,handle ,gray ,(2)		Appelez-nous	-
39	7241761017		Handle,drawer ,stainless		Appelez-nous	-
52	7316461700		Clip,element Mtg		Appelez-nous	-
60	7316513300		Screw,handle Mtg ,10-24 X 2.188 ,(2)		Appelez-nous	-
85	7316411000		Rack,mini Oven		Appelez-nous	-
100	7316410900		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	7316410201		Panel,top ,mini Oven		Appelez-nous	-
102	7316431201		Panel,oven Side ,rh ,mini Oven		Appelez-nous	-
103	7316431203		Panel,oven Side ,lh ,mini Oven		Appelez-nous	-
104	7316431500		Light Assembly,mini Oven		Appelez-nous	-
105	7316431303		Panel,main Back ,mini Oven		Appelez-nous	-
106	7316431400		Insualtion,oven Back ,mini Oven		Appelez-nous	-
107	7316431307		Shield,main Back ,mini Oven		Appelez-nous	-
108	7316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	7316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	7316410400		Shield,floor ,mini Oven		Appelez-nous	-
111	7316509601		Insulation,lower Shield		Appelez-nous	-
112	7316513700		Shield,upper Rear ,lower ,mini Oven		Appelez-nous	-
14A	7316414201		Insulation,door Sides ,mini Oven ,(2)		Appelez-nous	-
14B	7316414203		Insulation,door Bottom ,mini Oven		Appelez-nous	-
26A	7316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	7316501501		Bracket,chassis Support ,front		Appelez-nous	-
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant   (Replaces: 7318178110)			Immediately	$ 122.86
F15A	318198952		Element,7``/5`` ,dual ,750w/1800w ,(2)   (Replaces: 7316419902)			Immediately	$ 250.90
F15B	5304533520		Element-surface,6``/9`` ,3000w ,dual Radiant   (Replaces: 7316465001)			Immediately	$ 90.14
F15C	316216703		Element,surface ,triple ,6/9/12``				$ 284.07
F15D	7318198832		Element,surface ,warmer ,100 W		Appelez-nous	-
F37	7316490001		Probe,oven Temp ,mini Oven		Appelez-nous	-
F81	316413902		Element,bake ,mini Oven   (Replaces: 7316413902)				$ 166.09
FNI	316510620		Harness,wiring ,surface				$ 181.65
NI	7316416902		Harness,mini Oven ,to Light		Appelez-nous	-
NI	7316468100		Cleaner,smoothtop ,w/sponge		Appelez-nous	-
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-
NI	7316021110		Screw,8-18 X 0.5 ,black		Appelez-nous	-
NI	7316089500		Screw,10-16 X .486		Appelez-nous	-
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel   (Replaces: 7316008401)				$ 11.34
NI	75308014215		Screw,6-20 X 0.312		Appelez-nous	-
