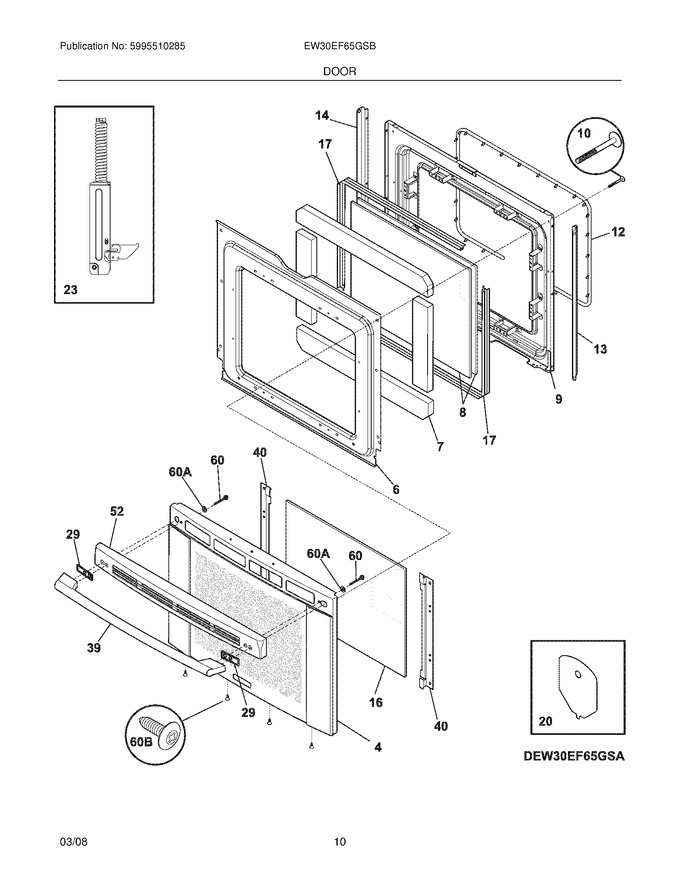

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	7316538302		Panel Assembly,door Glass ,w/badge ,outer,w/trim & Tape		Appelez-nous	-
6	7316503801		Shield,wool		Appelez-nous	-
7	7316513000		Insulation,oven Door		Appelez-nous	-
8	316502500		Glass,door ,inner ,(2)   (Replaces: 7316502500)			Immediately	$ 115.65
9	7316503601		Liner,oven Door ,cobalt		Appelez-nous	-
10	7316516801		Screw,truss Hd ,10-24 X 3.5 ,(2)		Appelez-nous	-
12	316405000		Seal,oven Door   (Replaces: 7316405001)			Immediately	$ 179.17
13	7316502702		Trim,door Filler ,black ,rh		Appelez-nous	-
14	7316502703		Trim,door Filler ,black ,lh		Appelez-nous	-
16	7316502600		Glass,door ,airwash		Appelez-nous	-
17	5304503172		Spacer,door Glass ,(2)   (Replaces: 7316502101)				$ 25.79
20	7316533801		Plate,distribution ,load		Appelez-nous	-
23	7316508701		Hinge Assembly,door ,yellow ,(2)		Appelez-nous	-
29	7316505401		Spacer,handle ,gray ,(2)		Appelez-nous	-
39	7241761001		Handle,door ,stainless		Appelez-nous	-
40	7316530401		Bracket,airwash Glass ,(2)		Appelez-nous	-
52	7316501402		Cap,door ,stainless		Appelez-nous	-
60	7316513300		Screw,handle Mtg ,10-24 X 2.188 ,(2)		Appelez-nous	-
60A	316008401		Washer,3/4 Od X 1/4 Id ,steel   (Replaces: 7316008401)				$ 11.34
60B	7316021110		Screw,8-18 X 0.5 ,black		Appelez-nous	-
NI	7316525700		Screw,hinge Mtg ,10-32 X 5/16 ,(4)		Appelez-nous	-
NI	7316433607		Label,anti-tip		Appelez-nous	-
NI	7316021109		Screw,8-18 X 0.5 ,chrome		Appelez-nous	-
