01 - Cover Sheet

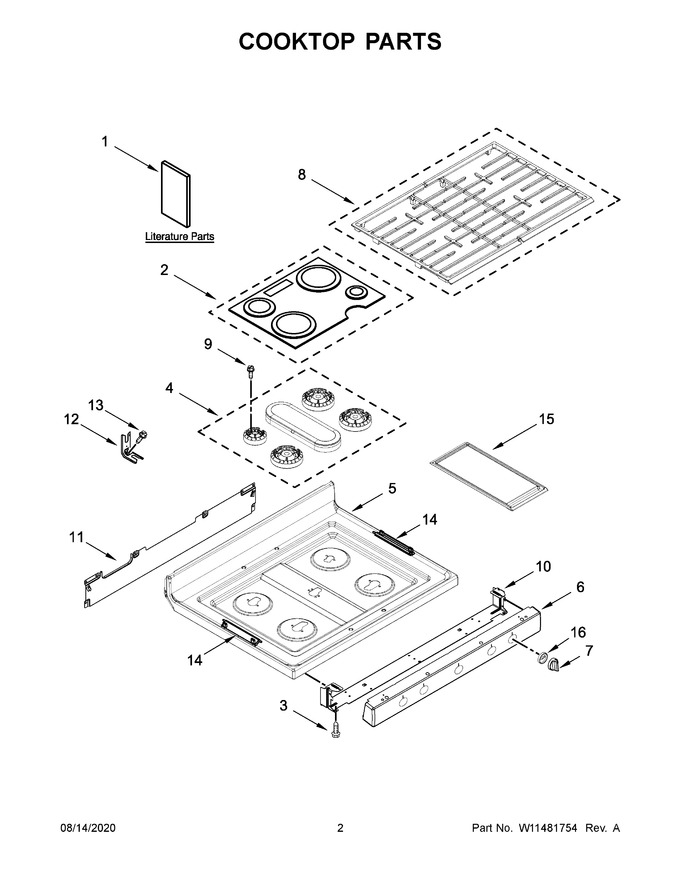

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11404107		Installation Instructions		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
4	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 108.84
5	W11459372		Cooktop (black)   (Replaces: W11418087)				$ 366.63
6	W11176796		Panel, Manifold (black)   (Replaces: W10867880)			Immediately	$ 204.83
7	W11176800		Knob (black)   (Replaces: W10912202)			Immediately	$ 69.39
8	W11175178		Grate Kit (black)   (Replaces: W10865170)				$ 312.79
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
14	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
15	W11123246		Griddle   (Replaces: W11043399)				$ 87.88
16	W10912201		Bezel (black)		Appelez-nous	-
1A	W11404100		Use & Care Guide		Appelez-nous	-
1B	W11096111		Tech Sheet (english)		Appelez-nous	-
1C	W11096115		Wiring Diagram (english/french)		Appelez-nous	-
1D	W11100300		Wiring Diagram (spanish)		Appelez-nous	-
5A	W11483225		Cooktop (white)   (Replaces: W11418088)				$ 366.95
6A	W11176799		Panel, Manifold (white)   (Replaces: W10867879)		Appelez-nous	-
7A	W11176806		Knob (white)   (Replaces: W10918417)				$ 67.02
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	W10918523		Bezel (white)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10887353		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 185.62
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	3196896		Clip, Wire		Appelez-nous	-
