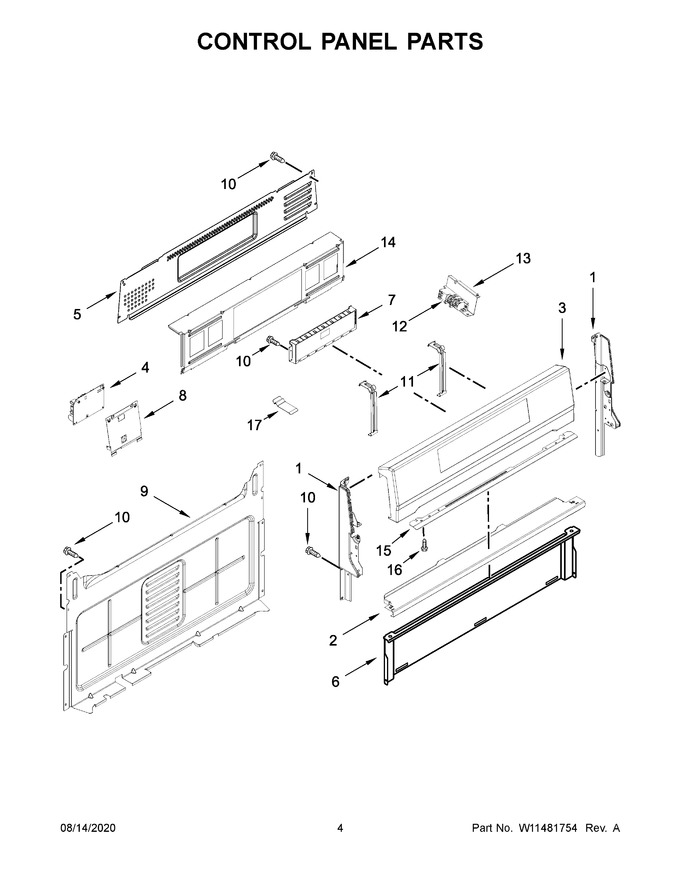

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 298.09
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W11177731		Console (black)   (Replaces: W10869986)				$ 295.68
4	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 196.59
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	W11175139		Control, Electronic (lcx) (black)   (Replaces: W10885939)			Immediately	$ 255.70
8	W10762981		Bracket, Mounting				$ 65.50
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
11	W10856361		Bracket, Control		Appelez-nous	-
12	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
13	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
14	W10901802		Panel, Backer				$ 80.93
15	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 190.66
16	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
17	WPW10551614		Spreader, Clip-spring   (Replaces: W10551614)				$ 11.77
15A	W11051311		Bracket, Eye Brow (white)				$ 78.28
1A	W11213292		Endcap (black (right))				$ 61.42
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 89.74
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 89.74
3A	W11177733		Console (white)   (Replaces: W10869987)				$ 285.58
