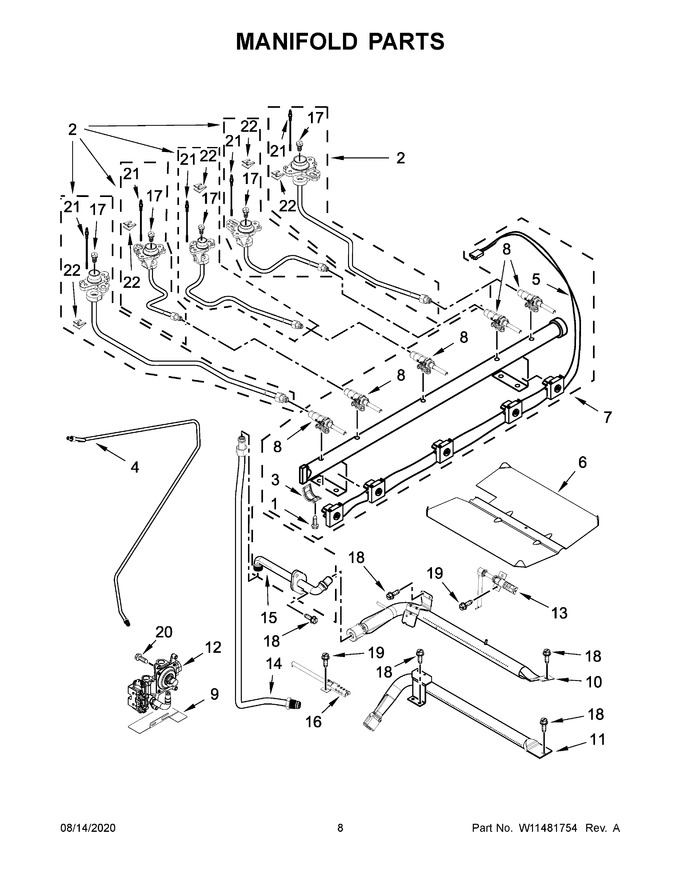

05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.27
2	W11453934		Orifice Holder Assembly (18k) (left Front)   (Replaces: W11331179)				$ 93.29
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 19.50
4	W10510125		Tubing, Main Supply				$ 187.42
5	W10906162		Switch, 5 Burner Manifold Harness   (Replaces: W10783317)				$ 162.33
6	3601P336-45		Baffle, Broil Burner				$ 194.65
7	W11418925		Manifold Assembly			Immediately	$ 272.24
8	W11628784		Valve, Gas (left Front And Right Front)   (Replaces: W11352012)				$ 66.22
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 79.76
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 78.56
12	W10919226		Valve, Gas   (Replaces: W10720102)			Immediately	$ 162.50
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 93.58
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 162.70
15	W10776437		Fitting, Broil				$ 87.80
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 77.23
17	W11428754		Orifice (18k) (left Front)				$ 73.93
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
19	W11684507		Screw   (Replaces: 3196385)				$ 12.23
20	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
21	W11453940		Electrode (left Front And Left Rear)   (Replaces: W11428831)				$ 55.25
22	W11684564		Spring, Electrode   (Replaces: W10827923)			Immediately	$ 10.71
17A	W10849720		Orifice (10k) (left Rear)				$ 70.67
17B	W11428753		Orifice (15k) (right Front)			Immediately	$ 71.37
17C	W11677633		Orifice (5k) (right Rear)   (Replaces: W10849719)				$ 84.99
17D	W11429345		Orifice (8k) (center)				$ 73.88
21A	W11453920		Electrode (right Front, Right Rear, Center)   (Replaces: W11428858)				$ 55.16
2A	W11453941		Orifice Holder Assembly (9.5k) (left Rear)   (Replaces: W11345009)				$ 93.37
2B	W11453919		Orifice Holder Assembly (15k) (right Front)   (Replaces: W11345011)				$ 96.45
2C	W11453921		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11345010)				$ 93.28
2D	W11453942		Orifice Holder Assembly (8k) (center)   (Replaces: W11345012)				$ 86.81
8A	W11699929		Valve, Gas (left Rear And Center)   (Replaces: W11352013)				$ 60.40
8B	W11352015		Valve, Gas (right Rear)				$ 96.89
NI	W11087486		Lp Conversion Kit (bake/broil)   (Replaces: W10566535)			Immediately	$ 101.10
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.26
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11453918		Lp 5 Orifice Conversion Kit   (Replaces: W11415424)				$ 32.44
