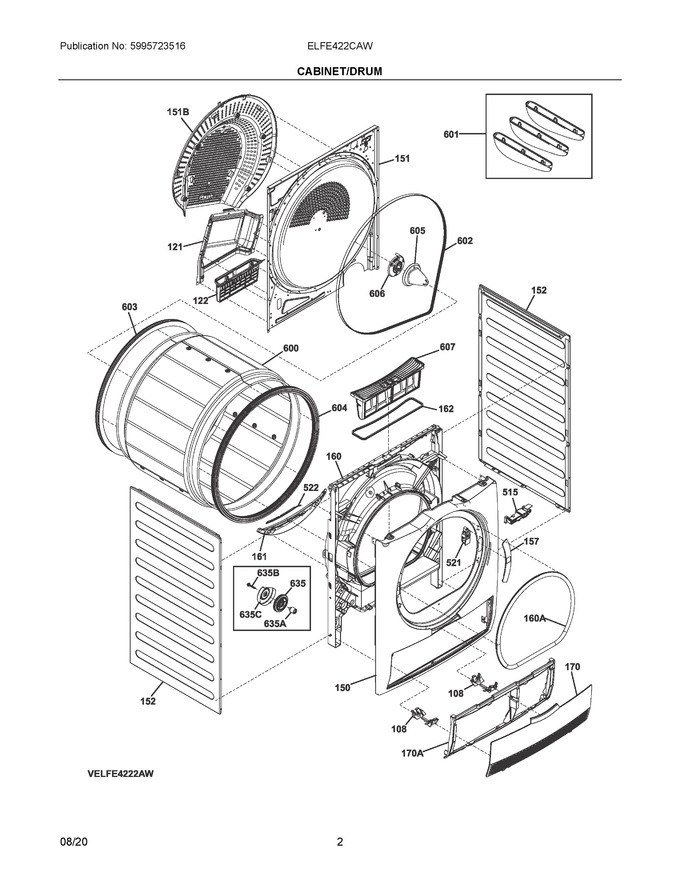

02 - Cabinet/drum


03 - Door Panel


04 - Controls/top Panel


05 - Drying System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
108	A04450702		Hinge, Plinth				$ 12.85
121	405541956		Cover Kit, Heating Element, W/gasket				$ 41.81
122	136602703		Grating, Protection, Heating Element				$ 353.91
150	136446200		Panel, Front, White				$ 206.90
151	A12311917		Back Panel, Assembly		Appelez-nous	-
152	5304526177		Panel, Side, White, Insulation   (Replaces: A13207501)			Immediately	$ 155.10
157	136608900		Cover Plate, Door Lock, White				$ 43.20
160	A11758304		Air Duct, Front		Appelez-nous	-
161	136605801		Support, Humidity Sensor				$ 61.95
162	136606100		Gasket, Lint Filter				$ 48.20
170	A06477510		Plinth, White				$ 119.58
515	136611111		Switch, Door			Immediately	$ 165.66
521	A06777701		Door Lock, Assembly			Immediately	$ 39.38
522	136602910		Sensor, Humidity			Immediately	$ 57.65
600	809070812		Drum Assembly, W/3 Vanes			Immediately	$ 223.25
601	405549390		Vane Kit, Drum, Grey, 3 Pieces				$ 41.11
602	809183801		Belt, Drive, L=1886.7mm				$ 50.46
603	136424300		Gasket, Drum, Back, 1683mm				$ 161.17
604	807708601		Gasket, Front, Large Opening				$ 78.94
605	136655404		Cone, Agitator, Anti-entangle		Appelez-nous	-
606	136623702		Cone, Anti-entangle, Base				$ 34.31
607	136601901		Lint Filter, Assembly, Fluff				$ 193.49
635	807787703		Roller, Support, Drum		Appelez-nous	-
151B	405542582		Bulkhead Kit, Rear, Plastic, W/insl Mat				$ 82.03
160A	A06609701		Gasket, Front, Large Opening			Immediately	$ 53.64
170A	A04451003		Support, Plinth, Black				$ 87.48
635A	125425004		Bushing, Support, Roller				$ 129.70
635B	124022201		Bolt, 5, 5x38				$ 43.95
635C	809166602		Cover, Roller, Metal				$ 26.76
NI	A17667601		Harness, Humid Sensor, To Main Board, J22		Appelez-nous	-
