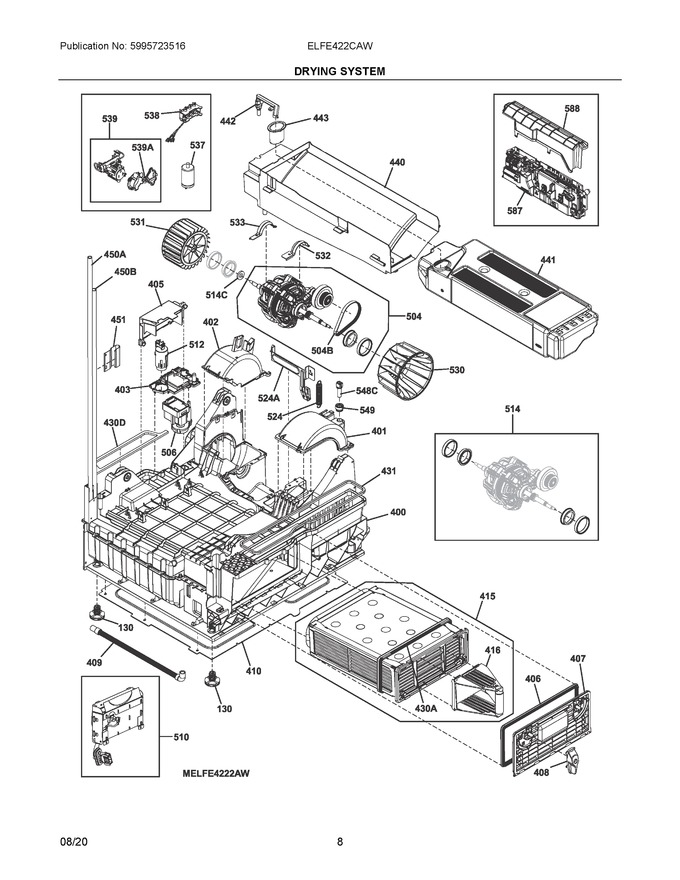

05 - Drying System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
130	899647060471		Leg, Level, Black, Adjust Foor			Immediately	$ 71.68
400	136600042		Basement, Condensor P10				$ 272.84
401	136604102		Cover, Fan Wheel, Front				$ 141.49
402	136604205		Cover, Fan Wheel, Back				$ 111.13
403	136604914		Support, Pump				$ 9.93
405	136606504		Cover, Pump, Float Switch				$ 100.36
406	136607300		Gasket, Door, Basement				$ 71.59
407	136609110		Door, Condenser, Basement				$ 72.72
408	136609214		Knob, Door Lock, Basement				$ 106.32
409	136605700		Pipe, Discharge, L=331.5mm				$ 56.28
410	A03209401		Cover, Basement		Appelez-nous	-
415	136701301		Condenser, Steam Asmy				$ 238.43
416	136607400		Handle, Steam Condensor		Appelez-nous	-
431	136605600		Sealing, Air Duct, Basement				$ 54.58
440	136601721		Support, Upper Tank		Appelez-nous	-
441	A05027101		Tank, Upper		Appelez-nous	-
442	136602804		Connector, Upper Tank				$ 17.01
443	A05734604		Bushing, Upper Tank, Oval		Appelez-nous	-
451	136603500		Tube, Holder		Appelez-nous	-
504	A13608402		Motor, Reduction Gear, 200v, 267hz, 207w				$ 349.70
506	136402403		Pump, Condensation, 240v, 60hz, 15w			Immediately	$ 130.98
510	5304537407		Heater, 240v, 1900+700w   (Replaces: 136611032)			Immediately	$ 159.10
512	136614001		Switch, Micro, Float				$ 150.87
514	405549614		Bushing Kit, Motor, Front & Rear				$ 18.08
524	125694900		Tension Spring, Motor				$ 53.50
530	136609300		Wheel, Fan, ?141mm, Front   (Replaces: 136609301)				$ 60.15
531	136604401		Fan, Wheel, Back, Cooling			Immediately	$ 233.89
532	A00551101		Fixing Bracket, Main Motor Frnt				$ 49.10
533	A00551201		Fixing Bracket, Main Motor Frnt				$ 49.89
537	808089303		Filter, Anti-interfer, Power Cable				$ 240.03
538	A01517006		Terminal Block, Asmy, Wiring, Csa		Appelez-nous	-
539	405551571		Receptacle, Assembly, W/cap				$ 256.64
549	991099931		Sealing, Temp Sensor   (Replaces: 124664400)				$ 0.02
587	5304525857		Pc Board, Assembly, Main, Configured			Immediately	$ 480.15
588	A04190901		Cover, Pc Board, Main Control		Appelez-nous	-
430A	125106700		Gasket, Heat Exchanger, Nex4 Cond, Front				$ 85.13
430D	136606800		Gasket, Heater, Basement				$ 57.88
450A	136605501		Hose, Pump, Tanl, L=1130		Appelez-nous	-
450B	136605411		Hose, Overflow, 1040mm				$ 116.24
504B	808699801		Belt, Drive, L=267.5mm, Reduction Gear				$ 139.63
514C	136608610		Felt, Disc, 024/012mm				$ 48.91
524A	A00299401		Support, Tension Spring				$ 117.66
539A	A18346501		Cap, Socket		Appelez-nous	-
548C	8581242941111		Temperature Probe, Ntc   (Replaces: 124294111)			Immediately	$ 22.70
NI	125122513		Fittings Kit, Drain, Condense, Dk11				$ 87.17
NI	5304505408		Power Cord, Electric Svce, 240, 4-wire Canada   (Replaces: 134502300)				$ 194.62
NI	A01523002		Harness, Anti-interfer, To Main Board		Appelez-nous	-
NI	A16314102		Harness, Motor, To Main Board		Appelez-nous	-
NI	A17667101		Harness, Temp Probe, To Wtr Lvl Prb				$ 169.16
NI	A17667201		Harness, Pump, To Main Board, J5		Appelez-nous	-
NI	A17667301		Harness, Heating Element, To Main Board, J17 & J18				$ 177.12
NI	A17667401		Harness, Heating Element, To Main Board, J23 & 1490				$ 177.12
NI	A19709102		Harness, Terminal Block, To Socket				$ 149.54
NI	5022432900		Nut, M6		Appelez-nous	-
