Diagram # Part Number Description Series Availability Ships Price Add to Cart
360 A04449812 Door Frame, Grey, Back Special Order $ 131.28

361 A04449207 Door Frame, Grey, Front Special Order $ 232.92

362 A18041201 Window, Transparent, Inner Special Order $ 122.90

363 A04450402 Hinge Assembly, Door Special Order $ 92.35

365 132554120 Pin, Door Hinge Special Order $ 43.95

366 A04917502 Tappet, Door, Aluminum Special Order $ 22.34

367 136625401 Bushing, Hinge Special Order $ 5.07

369 A04449908 Gasket, Door, Black Special Order $ 32.76

370A 808681114 Catch, Door Lock, Glass Door In-Stock Immediately $ 21.99


    View Diagram in Separate Window     Print Icon   Print Part List

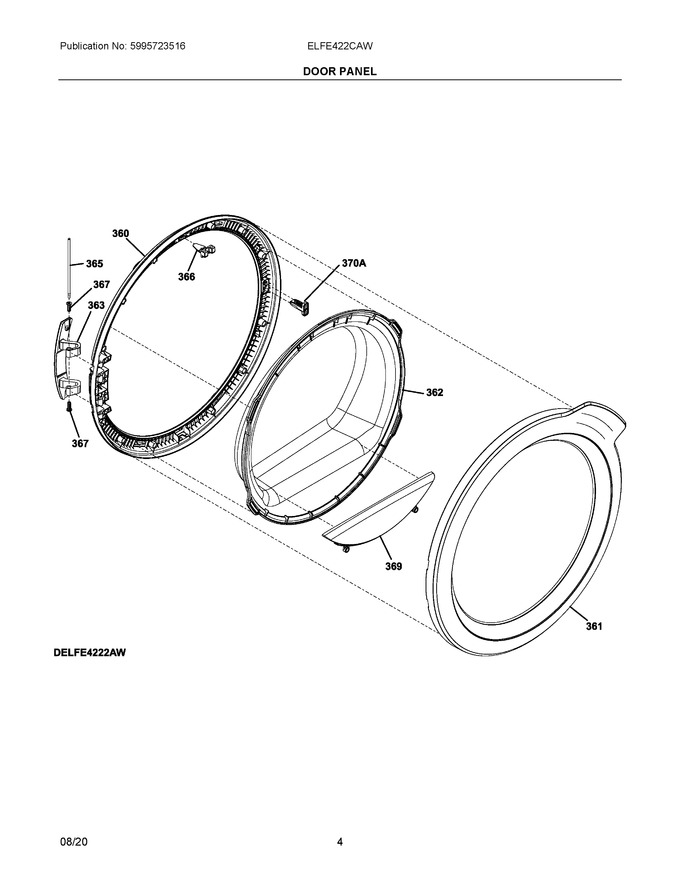

Diagram for ELFE422CAW
