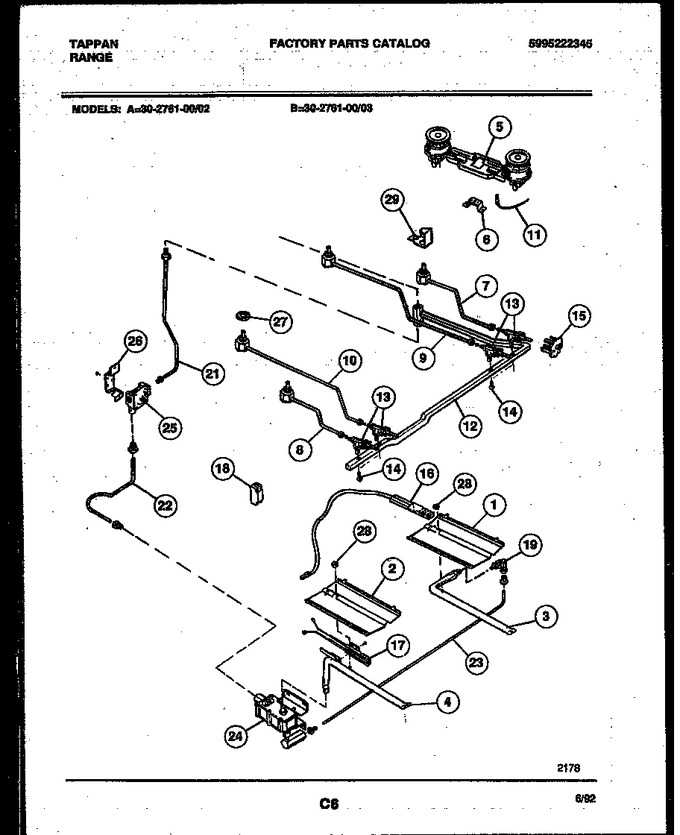

02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210379 | Baffle, Broil |
|
$ 175.88 | |||||
| 2 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 3 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| 4 | 3131290 | Burner-oven |
|
- | |||||
| 5 | 5303131147 | Burner-top-double |
|
- | |||||
| 6 | 3200277 | Brkt-burner Mtg |
|
- | |||||
| 7 | 5303283665 | Burner-tube Rf |
|
- | |||||
| 8 | 5303283666 | Burner-tube Lf |
|
- | |||||
| 9 | 5303283667 | Burner-tube Rr |
|
- | |||||
| 10 | 5303283668 | Burner-tube Lr |
|
- | |||||
| 11 | 3200276 | Igniter-top Burner (2) |
|
- | |||||
| 12 | 5303271375 | Manifold Pipe |
|
- | |||||
| 13 | 316031900 | Valve-top-2 Pos |
|
- | |||||
| 14 | 5303269845 | Screw Burner Mtg |
|
- | |||||
| 15 | 316032001 | Ignition-switch |
|
$ 69.35 | |||||
| 16 | 5303935068 | Igniter-broiler Burner (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 17 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 18 | 5303200669 | Spark Module |
|
- | |||||
| 19 | 5303208640 | Mixer Elbow |
|
- | |||||
| 21 | 5303208495 | Tube-alum-regul To Manifold |
|
- | |||||
| 22 | 5303208494 | Tube-alum-valve To Regul |
|
- | |||||
| 23 | 5303208493 | Tube-alum-valve To Mixer |
|
- | |||||
| 24 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 25 | 5303280582 | Control-regulator |
|
- | |||||
| 26 | 08067934 | Bracket-regulator |
|
- | |||||
| 27 | 3013279 | Nut, Special |
|
$ 2.34 | |||||
| 28 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 29 | 3016993 | Retainer-igniter |
|
- |
