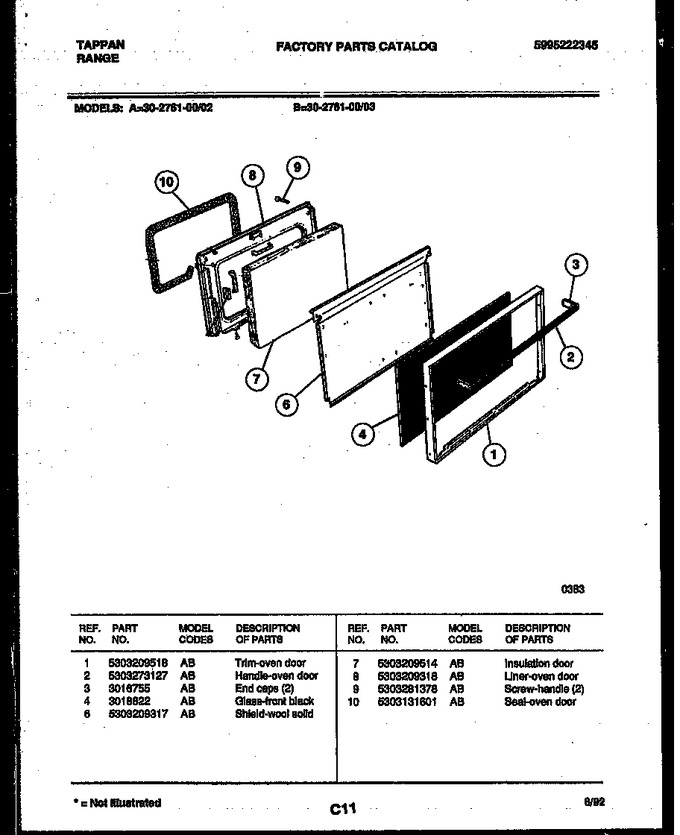

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 5303273127 | Handle-oven Door |
|
- | |||||
| 3 | 3016755 | End Caps (2) |
|
- | |||||
| 4 | 3018822 | Glass Front - Black |
|
- | |||||
| 6 | 5303209317 | Shield-wool Solid |
|
- | |||||
| 7 | 5303209514 | Insulation-door |
|
- | |||||
| 8 | 5303209318 | Liner-oven Door |
|
- | |||||
| 9 | 5303281378 | Screw, Handle (2) |
|
$ 13.60 | |||||
| 10 | 5303131601 | Seal-oven Door |
|
$ 374.63 |
