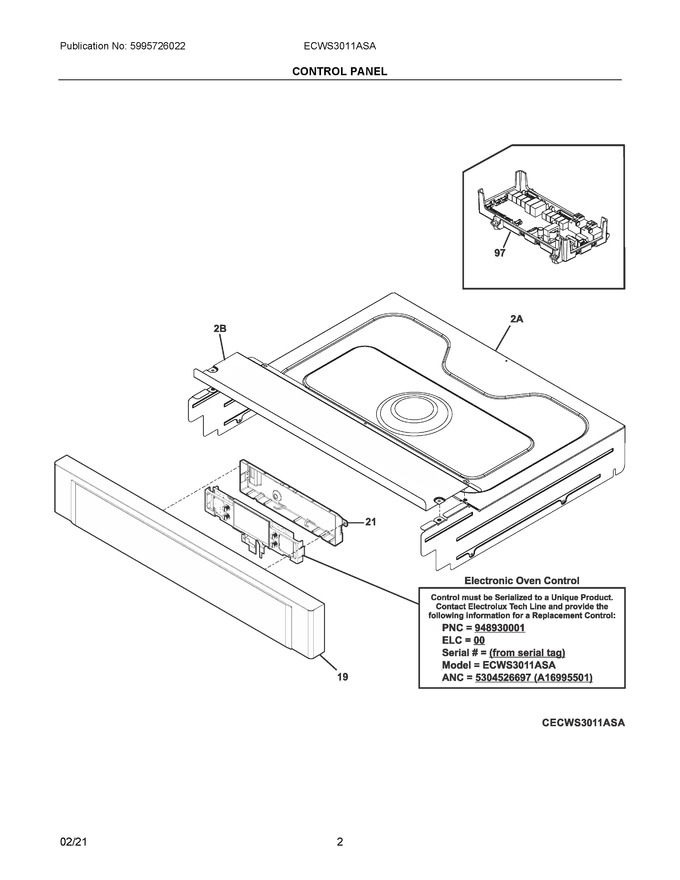

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304523595 | Control Panel, Assembly, Glass/steel, Black/stainless |
|
$ 328.85 | |||||
| 21 | 5304523582 | Housing, Controller |
|
Immediately | $ 34.13 | ||||
| 97 | 316472808 | Circuit Board, Assembly, Ovc1, W/housing |
|
$ 440.26 | |||||
| 2A | 5304521623 | Shield, Wire, Top |
|
$ 96.32 | |||||
| 2B | 5304520853 | Cover, Control Access |
|
$ 57.91 | |||||
| NI | 5304526698 | Harness, Wiring, Ovc To, Control Panel |
|
$ 15.92 | |||||
| NI | 5304514831 | Harness, Grounding Wire |
|
$ 11.38 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5304514832 | Harness, Wiring, Upper Oven, Hall Effect |
|
$ 51.57 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
