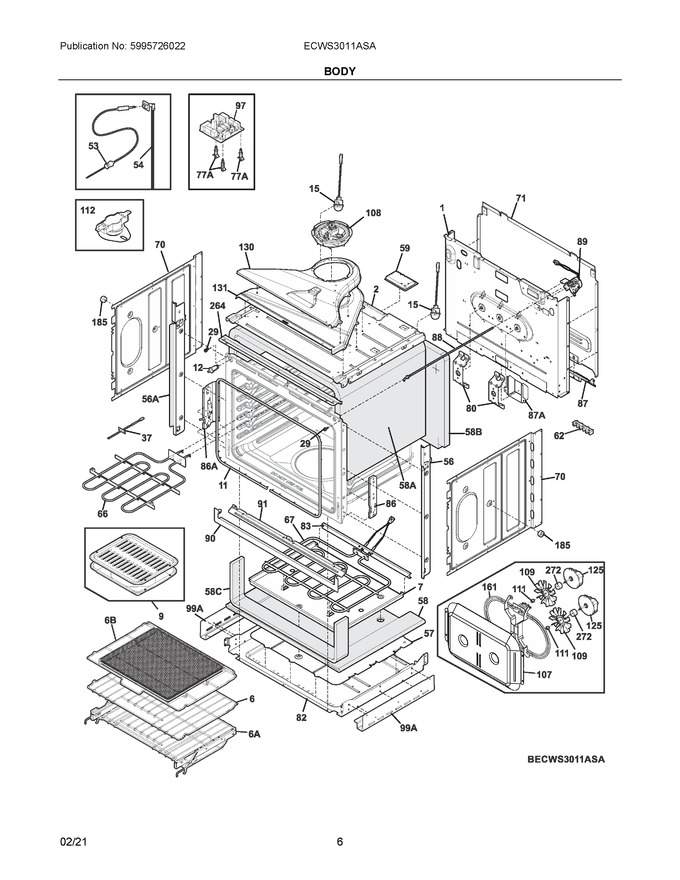

Diagram #	Part Number	Description	Availability	Ships	Price
1	5304525130	Panel, Main Back	Appelez-nous	-
2	808651302	Shield, Insulation, Top	Appelez-nous	-
6	5304525129	Rack, Oven, Nickel, W/handle			$ 114.29
7	5304520858	Box, Bake Element			$ 127.40
9	5304494997	Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory			$ 72.01
11	139036700	Seal, Oven Door		Immediately	$ 109.96
12	808136601	Switch, Light, Door (Replaces: 318394802)		Immediately	$ 44.04
15	5304528790	Lamp Assembly, Round, Halogen		Immediately	$ 20.56
29	316517600	Bumper, Front, Main			$ 12.05
37	5304504897	Sensor, Oven Temp Probe		Immediately	$ 48.13
53	5304504202	Probe, Meat Temp, Red (Replaces: 5304514885)		Immediately	$ 106.19
54	139017203	Receptacle Assy, Meat Probe (Replaces: 5304514886)		Immediately	$ 153.09
56	5304500598	Trim, Side, Black, Lh			$ 73.71
57	5304521752	Sheild, Air Wash, Lower	Appelez-nous	-
58	808816501	Insulation, Bottom	Appelez-nous	-
59	808931401	Vent Box Assy., W/catalyst			$ 132.53
62	5304409888	Terminal Block (Replaces: 316056000)		Immediately	$ 26.69
66	140123969028	Element, Broil, 6 Pass, 4000w (Replaces: 5304514924)	Appelez-nous	-
67	5304516286	Element, Hidden Bake, 2200w		Immediately	$ 109.21
70	139000601	Shield, Insulation, Sides, (2)			$ 72.05
71	808650302	Shield, Rear Wall			$ 137.50
80	139021101	Bracket, Support, Chassis/fan			$ 14.89
82	5304522581	Shield, Insulation, Lower			$ 93.56
83	5304520860	Shield, Bake Tray, Rear			$ 24.10
86	808930501	Receptacle, Hinge, Soft Close	Appelez-nous	-
87	5304520557	Bracket, Cable Box	Appelez-nous	-
88	808721601	Rod, Door Latch			$ 53.85
89	5304528925	Motor Assy., Door Latch (Replaces: 808721803)			$ 117.12
90	5304523579	Trim, Lower Vent, Stainless			$ 93.66
91	5304518870	Divider, Lower Air, Black			$ 81.90
97	5304523590	Pc Board, Relay, Rampup Lighting			$ 205.22
107	5304500627	Cover, Dual Fan, Black, Convection			$ 139.80
108	5304528825	Motor Assembly, Fan		Immediately	$ 178.30
109	318398302	Fan Blade		Immediately	$ 29.11
111	316136600	Nut, Fan Retainer		Immediately	$ 19.13
112	5304538823	Thermostat, Safety, 125c (Replaces: 318578509)		Immediately	$ 14.72
125	139008504	Motor, Convection Fan, 2 Speed		Immediately	$ 170.57
130	808651606	Duct, Cooling Fan, Upper		Immediately	$ 147.12
131	808651702	Duct, Cool Fan, Lower			$ 115.27
161	5304500622	Element, Convection, Dual, 3400w			$ 163.05
185	318531800	Spacer, Oven Shield, (2)			$ 12.76
264	5304500596	Trim, Vent, Black, Upper			$ 48.91
272	139021700	Tube, Convection Fan			$ 17.72
56A	5304500597	Trim, Side, Black, Rh			$ 77.26
58A	808905502	Insulation, Oven Wrapper	Appelez-nous	-
58B	808905101	Insulation, Oven Back	Appelez-nous	-
58C	807887503	Insulation, Bake Element, Front	Appelez-nous	-
6A	5304525128	Rack Assembly, Gliding, Nickel, W/handle			$ 228.59
6B	WOAIRFRYTRAY	Wo Air Fry Tray Kit		Immediately	$ 107.02
77A	316114100	Spacer			$ 60.96
86A	807418503	Receptacle, Hinge, W/damper, Soft Close			$ 196.33
87A	5304520866	Shield, Terminals, Bake Element	Appelez-nous	-
99A	5304514974	Support, Floor	Appelez-nous	-
NI	316021109	Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105)		Immediately	$ 27.50
NI	5304506984	Harness Assembly, Conduit, Elbow Connector, & Wiring			$ 150.17
NI	5304523577	Harness, Wiring, Mdl Ads			$ 94.27
NI	807597603	Screw, Self Tapping, 8-18 X 11/32, (4)			$ 9.22
NI	5304470882	Screw, Anti-tip, 8 - 5/8, Black, (2)			$ 13.46
NI	5304523591	Harness, Wiring, Main			$ 173.65
NI	5303289910	Screw, Truss Sqdr, 8a X 1", 62*			$ 5.67
NI	316418900	Screw, Sims Lp, #8-32 X 5/16", Black			$ 14.18
NI	316021109	Screw, 8-18 X 0.5, Chrome		Immediately	$ 27.50
NI	316021109	Screw, 8-18 X 0.5, Black (Replaces: 316021110)		Immediately	$ 27.50
NIA	316001017	Screw, Ground Wire (Replaces: 316001003)			$ 3.03
NIA	318167300	Clip, Rod			$ 2.84
NIB	316205500	Nut, Hex Flange, 3/8 10-32			$ 11.34
NIB	5303311164	Spring			$ 18.95
NIC	5304436864	Washer, Flat			$ 2.84
