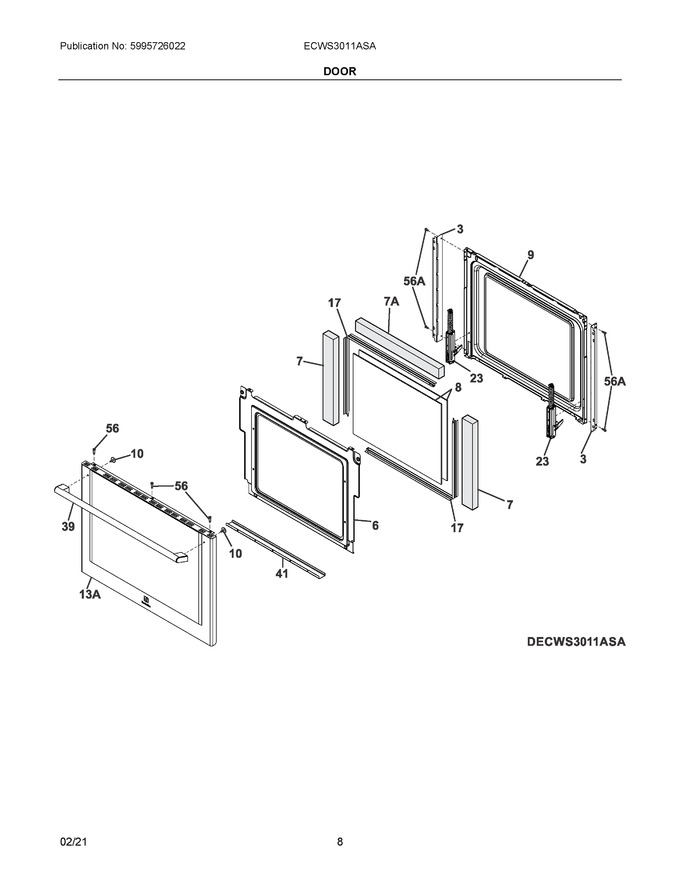

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304520787		Trim, Oven Door, Black, Side Vent				$ 61.66
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	807887502		Insulation, Door, Side, (2)				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502504)			Immediately	$ 115.65
9	808474610		Liner, Oven Door, Black			Immediately	$ 129.68
10	5304414648		Screw, Handle Mtg., #10-24 X .625   (Replaces: 316439510)				$ 14.18
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	808930403		Hinge, Door, Orange, Soft Close				$ 113.00
39	5304523585		Handle, Door, Stainless				$ 167.72
41	5304500644		Support, Glass				$ 19.35
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
13A	5304523587		Door Assembly, Outer, Glass/steel, Black/stainless, W/logo				$ 472.85
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	5304505925		Insulation, Door, Upper				$ 15.17
8A	316502506		Glass, Door, Inner, Shr Tinted		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
