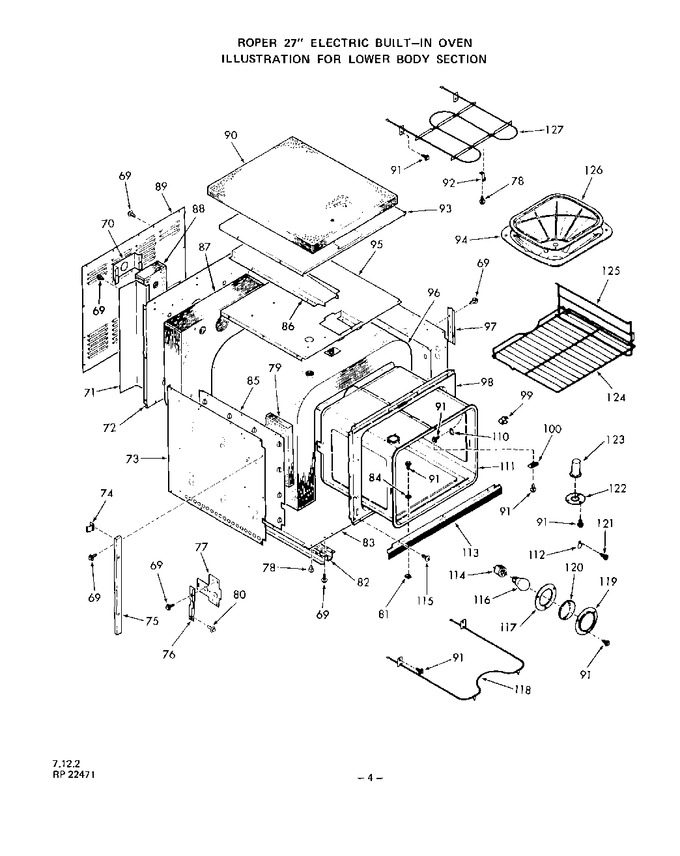

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
69	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
70	311538		Insulation Retainer-oven Light		Appelez-nous	-
71	314109		Side-air Channel (lt. Or Rt.)		Appelez-nous	-
72	313929		Main Back		Appelez-nous	-
73	311724		Cabinet Side (right)		Appelez-nous	-
73	311723		Cabinet Side (left)		Appelez-nous	-
74	311726		Spacer (4 Required)		Appelez-nous	-
75	311725		Side Trim-lt. Or Rt.		Appelez-nous	-
76	322611		Hinge Angle-lt. Or Rt.		Appelez-nous	-
77	322609		Hinge Box-lt. Or Rt.		Appelez-nous	-
78	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
79	279470		Insulation (lt. Or Rt.)		Appelez-nous	-
80	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
81	107956		Speed Nut 10-32		Appelez-nous	-
82	313970		Base-lt. Or Rt.		Appelez-nous	-
83	313927		Cabinet Bottom		Appelez-nous	-
84	106462		Washer		Appelez-nous	-
85	311551		Insulation Retainer-oven Side		Appelez-nous	-
86	311733		Top Vent Box		Appelez-nous	-
87	WP660579		Insulation-oven Back & Bottom   (Replaces: 311713)				$ 140.80
88	WP660579		Oven Light Insulation   (Replaces: 311715)				$ 140.80
89	WP489128		Cabinet Back   (Replaces: 311722)				$ 9.79
90	WP660579		Insulation-cabinet Top   (Replaces: 311714)				$ 140.80
91	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
92	104923		Broiler Element Support		Appelez-nous	-
93	311553		Insulation Retainer-cabinet Top		Appelez-nous	-
94	311878		Broiler Pan		Appelez-nous	-
95	311552		Insulation Retainer-oven Top		Appelez-nous	-
96	311712		Insulation Oven Top & Sides (1 Piece)		Appelez-nous	-
97	311727		Raceway		Appelez-nous	-
98	311560		Front Frame		Appelez-nous	-
99	288392		Thermostat Bulb Retainer (2 Required)		Appelez-nous	-
100	304835		Cover		Appelez-nous	-
110	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
111	311584		Oven Body		Appelez-nous	-
112	229607		Cover Plate, Rotisserie		Appelez-nous	-
113	313995		Lower Trim		Appelez-nous	-
114	87883		Holder-oven Light Bulb		Appelez-nous	-
115	112013		Screw 10-32 X 5/8``		Appelez-nous	-
116	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 144.00
117	229371		Gasket-oven Light		Appelez-nous	-
118	WG02F05449		Bake Element   (Replaces: 320418)				$ 84.06
119	229372		Lens Retainer-oven Light		Appelez-nous	-
120	114989		Oven Light Lens		Appelez-nous	-
121	289730		Shoulder Bolt 10-32x1/2``		Appelez-nous	-
122	303612		Oven Vent Clamp		Appelez-nous	-
123	WP660579		Oven Vent Tube   (Replaces: 311716)				$ 140.80
124	311735		Oven Rack (2 Required)		Appelez-nous	-
125	305350		Oven Rack Guide-rt. Or Lt.		Appelez-nous	-
126	280259		Broiler Pan Grid		Appelez-nous	-
127	ET342		Broiler Element   (Replaces: 319526)				$ 49.95
