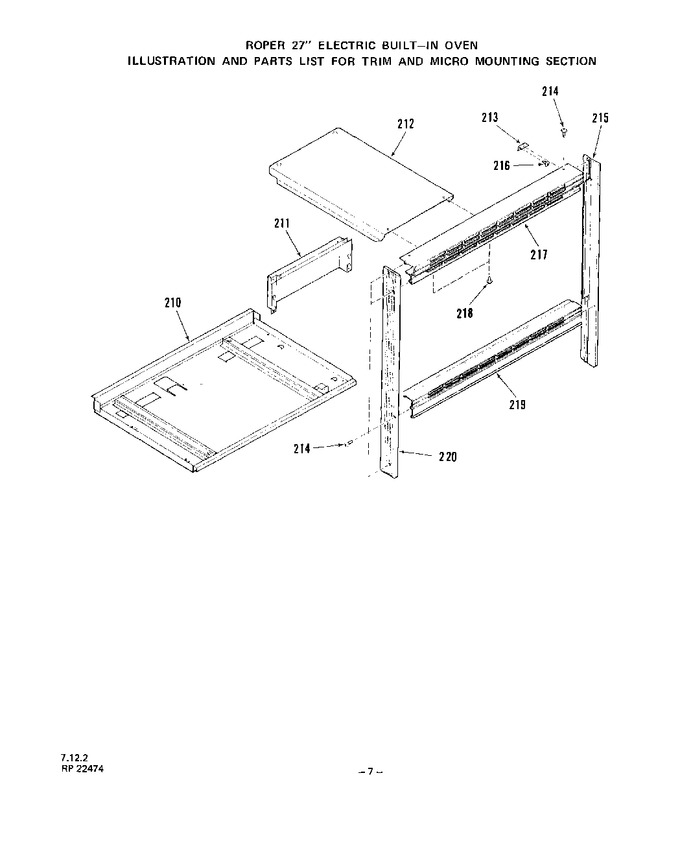

06 - Trim And Micro Mounting, Lit/optional
07 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 210 | 322774 | Module Support Bottom |
|
- | |||||
| 211 | 322764 | Vent Box |
|
- | |||||
| 212 | 322766 | Extension-vent |
|
- | |||||
| 213 | 313943 | Bracket-control Panel (2 Required) |
|
- | |||||
| 214 | 299766 | Screw 6-32 X 1/2`` |
|
- | |||||
| 215 | 322770 | Right Side Trim |
|
- | |||||
| 216 | 71666 | Screw 8abx1/2`` |
|
- | |||||
| 217 | 322775 | Top Trim |
|
- | |||||
| 218 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 219 | 322799 | Lamp Shade |
|
- | |||||
| 220 | 322771 | Left Side Trim |
|
- | |||||
| 220 | 322794 | Auxiliary |
|
- | |||||
| 220 | 322801 | Repair Parts Manual |
|
- | |||||
| 220 | 313301 | Electric Use & Care Guide |
|
- | |||||
| 220 | 322828 | Installation & Reference Guide |
|
- | |||||
| 220 | 322829 | Operating Guide |
|
- | |||||
| 323517 | Main |
|
- |
