SELECT A DIAGRAM

02 - Control Panel


03 - Oven Door Lock


04 - Lower Body


05 - Oven Door


06 - Trim And Micro Mounting, Lit/optional


07 - Optional

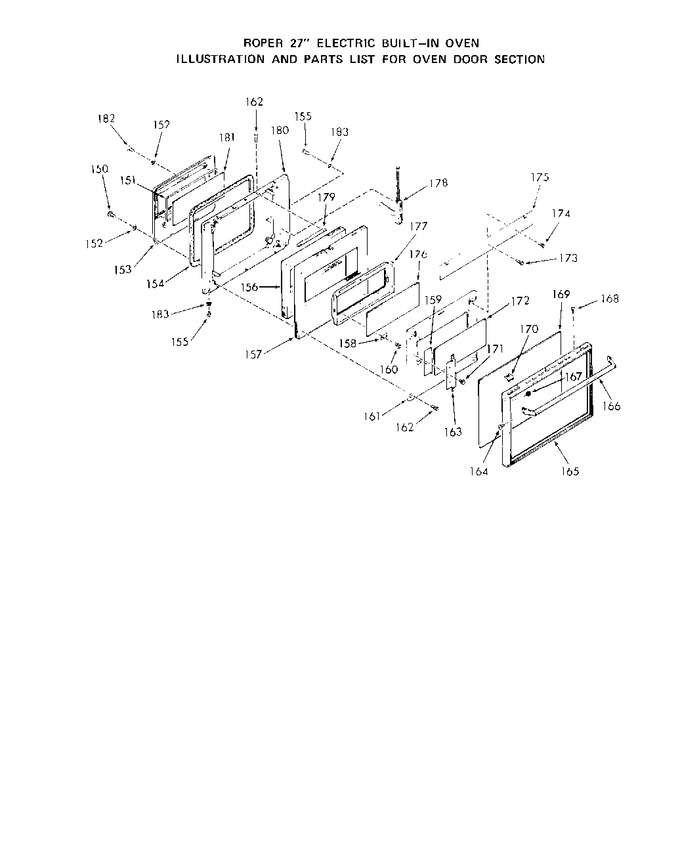

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
150	102376		Screw 10-32 X 1/2``		Appelez-nous	-
151	302935		Asbestos Seal		Appelez-nous	-
152	21067		Washer		Appelez-nous	-
153	311748		Plug-oven Door Lining		Appelez-nous	-
154	311925		Oven Door Gasket		Appelez-nous	-
155	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
156	311872		Insulation-oven Door Plug		Appelez-nous	-
157	311874		Insulation-oven Door Lining		Appelez-nous	-
158	312888		Door Glass Retainer (4 Required)		Appelez-nous	-
159	310929		Spacer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
160	295849		Screw 10-32x17/32``		Appelez-nous	-
161	312902		Retainer-oven Door Insulation		Appelez-nous	-
162	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
163	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 6.81
164	319447		Screw 8-32 X 1/2``		Appelez-nous	-
165	311737		Frame-oven Door		Appelez-nous	-
166	318941		Oven Door Handle		Appelez-nous	-
167	239764		Keps Nut 8-32		Appelez-nous	-
168	295268		Screw 6-32x3/8``		Appelez-nous	-
169	311738		Oven Door Glass-outer		Appelez-nous	-
170	299596		Door Glass Retainer (6 Required)		Appelez-nous	-
171	321162		Screw 10-32 X 3/4``		Appelez-nous	-
172	308239		Oven Door Glass-intermediate		Appelez-nous	-
173	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
174	293121		Screw 6-32x1/4``		Appelez-nous	-
175	311751		Baffle-oven Door Lining		Appelez-nous	-
176	296214		Oven Door Glass-center		Appelez-nous	-
177	311746		Retainer-oven Door Glass		Appelez-nous	-
178	311556		Oven Door Hinge-rt. Or Lt.		Appelez-nous	-
179	WP312967		Oven Door Lining Stiffener   (Replaces: 312967)			Immediately	$ 10.68
180	311744		Oven Door Lining		Appelez-nous	-
181	312426		Oven Door Glass-inner		Appelez-nous	-
182	105799		Screw 10abx1		Appelez-nous	-
183	106462		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
