SELECT A DIAGRAM

01 - Cover Sheet

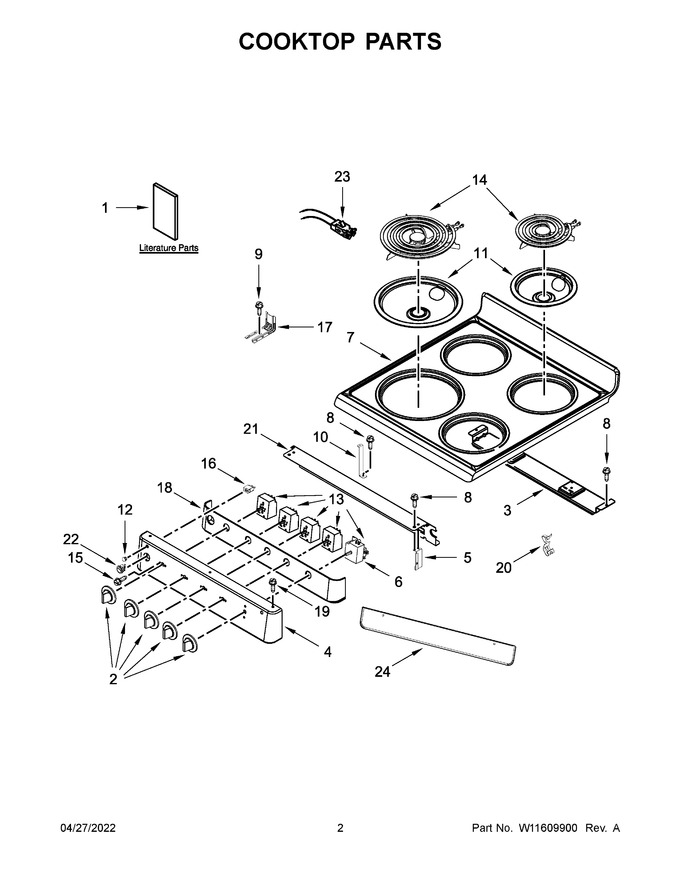

02 - Cooktop Parts


03 - Chassis Parts


04 - Door And Drawer Parts


05 - Backguard Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11256486		Use & Care Guide		Appelez-nous	-
2	WPW10183393		Knob, Control   (Replaces: W10183393)				$ 18.63
3	W10168363		Support, Burner		Appelez-nous	-
4	W11543893		Panel, Control (white)		Appelez-nous	-
5	W11509664		Bracket, Support Left		Appelez-nous	-
6	WP74009277		Thermostat   (Replaces: W10179656)				$ 287.67
7	W10175582		Cooktop (white)		Appelez-nous	-
8	W10837731		Screw   (Replaces: W10493726)				$ 7.07
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11259395		Bracket, Cooktop		Appelez-nous	-
11	WPW10196405		Bowl, Chrome (8" (left Front))   (Replaces: W10179653)			Immediately	$ 15.56
12	W11690131		Lens, Indicator   (Replaces: W10179657)				$ 6.73
13	WPW10179654		Switch, Infinite (left Front)   (Replaces: W10179654)				$ 144.45
14	W11396790		Element, Coil Heating (2400w) (left Front)   (Replaces: W11364019)			Immediately	$ 91.95
15	WP3400882		Screw   (Replaces: 98005663)			Immediately	$ 6.47
16	W10852510		Indicator, Light   (Replaces: W10185551)				$ 106.11
17	WPW10477747		Anti-tip Kit   (Replaces: W10477747)				$ 19.61
18	W11512692		Foil, Panel		Appelez-nous	-
19	WP98008545		Screw (black)   (Replaces: 98008545)				$ 15.94
20	98005642		Clip, Therm Bulb			Immediately	$ 74.64
21	W11509663		Shield, Control		Appelez-nous	-
22	98011571		Switch, Rocker (white)		Appelez-nous	-
23	814399		Receptacle, Element			Immediately	$ 38.87
24	W11520373		Z" Bracket, Manifold		Appelez-nous	-
11A	WPW10196406		Bowl, Chrome (6" (left Rear, Right Rear, Right Front))   (Replaces: W10179650)			Immediately	$ 12.05
13A	WP74002328		Switch, Infinite (left Rear, Right Rear, Right Front)   (Replaces: W10179655)				$ 144.06
14A	W11396792		Element, Coil Heating (1500w) (left Rear, Right Rear, Right Front)   (Replaces: W11364018)			Immediately	$ 90.46
1A	W10459122		Insallation Instructions		Appelez-nous	-
1B	W10181003		Tech Sheet		Appelez-nous	-
1C	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
5A	W11509665		Bracket, Support Right		Appelez-nous	-
NI	W11241454		Harness, Switch		Appelez-nous	-
NI	W11176327		Wire, Infinite To Term Block L1 (black)		Appelez-nous	-
NI	W11176350		Wire, Term Block To Thermostat (red)		Appelez-nous	-
NI	W11176347		Wire, Thermostat To Bake Element		Appelez-nous	-
NI	W11176348		Wire, Thermostat Br Bake Element (yellow)		Appelez-nous	-
NI	W11176349		Wire, Broiler Element To Thermostat To Bk		Appelez-nous	-
NI	W11176361		Wire, Tstat (4) To Tstat (black)		Appelez-nous	-
NI	W11176362		Wire, Tstat (h) To Oven Indicator Light (black)		Appelez-nous	-
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
NI	3196696		Clip-harness		Appelez-nous	-
NI	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
NI	W11176326		Harness, Wire (surface To Panel Assembly)		Appelez-nous	-
NI	W11219526		Harness, Wire (oven Light Switch)		Appelez-nous	-
NI	W11188382		Harness, Wire (ground)		Appelez-nous	-
