01 - Cover Sheet
02 - Cooktop Parts

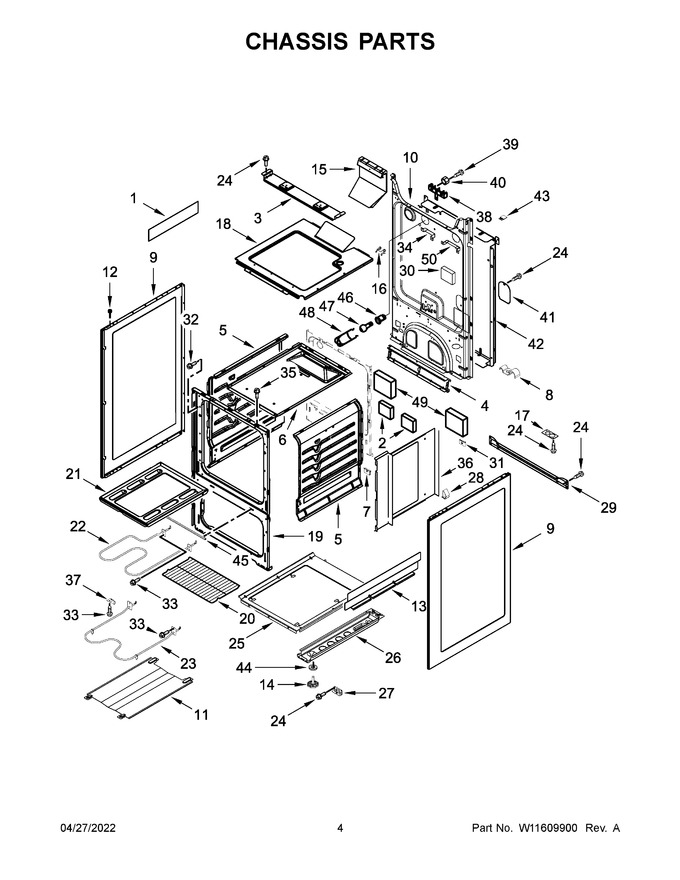

03 - Chassis Parts
04 - Door And Drawer Parts
05 - Backguard Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10368736 | Aluminum Foil |
|
- | |||||
| 2 | W10185442 | Counterweight |
|
- | |||||
| 3 | W10168363 | Support, Burner |
|
- | |||||
| 4 | 98012912 | Support, Oven Burner |
|
- | |||||
| 5 | 98004452 | Side, Oven (right Hand) |
|
- | |||||
| 6 | 98004448 | Top, Oven |
|
- | |||||
| 7 | 98005502 | Clip, Oven Botton |
|
$ 12.10 | |||||
| 8 | W11510655 | Clip, Tubing |
|
- | |||||
| 9 | W11501467 | Panel, Side (white) |
|
- | |||||
| 10 | W10166296 | Back, Main |
|
- | |||||
| 11 | 98015099 | Spread, Flame (bake) |
|
$ 243.31 | |||||
| 12 | W10207167 | Bumper, Cooktop |
|
- | |||||
| 13 | 98007191 | Shield, Heat (lower) |
|
- | |||||
| 14 | WP3196037 | Foot, Front (Replaces: W10153610) |
|
$ 74.67 | |||||
| 15 | WPW10116396 | Box, Flue (Replaces: W10116396) |
|
$ 80.13 | |||||
| 16 | 98013690 | Spring, Torsion (flue Box) |
|
- | |||||
| 17 | W10180177 | Plate, Conduit |
|
- | |||||
| 18 | W10208539 | Box, Burner |
|
- | |||||
| 19 | W11503844 | Frame, Front |
|
- | |||||
| 20 | W11223841 | Rack, Oven (Replaces: 98016942) |
|
$ 95.09 | |||||
| 21 | W10192836 | Bottom, Oven |
|
- | |||||
| 22 | W10170571 | Element, Broil |
|
- | |||||
| 23 | WPW10163272 | Element, Bake (Replaces: W10163272) |
|
$ 123.97 | |||||
| 24 | W10837731 | Screw (Replaces: W10493726) |
|
$ 7.07 | |||||
| 25 | 98003945 | Baffle, Base |
|
- | |||||
| 26 | 98003830 | Rail, Base |
|
- | |||||
| 27 | 98007126 | Base, Foot |
|
- | |||||
| 28 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 10.67 | |||||
| 29 | 98010054 | Support, Rear |
|
- | |||||
| 30 | 98006710 | Counterweight |
|
- | |||||
| 31 | 98009179 | U-nut |
|
$ 12.02 | |||||
| 32 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 15.94 | |||||
| 33 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 34 | W11040327 | Brick Support, Upper |
|
- | |||||
| 35 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 6.47 | |||||
| 36 | 98017387 | Baffle, Side |
|
- | |||||
| 37 | 98004973 | Support, Element |
|
- | |||||
| 38 | W10181453 | Block, Terminal Bare Wire |
|
$ 27.64 | |||||
| 39 | W11684512 | Screw (Replaces: W10179708) |
|
$ 12.69 | |||||
| 40 | WP112432 | Nut, Terminal Block (Replaces: W10204883) |
|
$ 7.16 | |||||
| 41 | W10209692 | Cover, Terminal Block |
|
- | |||||
| 42 | W10159819 | Cover, Main Rear |
|
- | |||||
| 43 | W10206594 | Block, Adapter |
|
- | |||||
| 44 | 98007193 | Spacer |
|
$ 8.91 | |||||
| 45 | W11522388 | Seal, Door |
|
- | |||||
| 46 | W10856866 | Socket - Oven Light (Replaces: W10554269) |
|
$ 6.47 | |||||
| 47 | W10888179 | Bulb, Light (Replaces: W10788320) |
|
$ 59.84 | |||||
| 48 | W11319570 | Protector, Lamp (Replaces: W10224805) |
|
- | |||||
| 49 | W11173320 | Counterweight (Replaces: W10902689) |
|
- | |||||
| 50 | W11036713 | Support, Brick |
|
- | |||||
| 14A | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 5A | 98004451 | Side, Oven (left Hand) |
|
- | |||||
| NI | NP | Rail, Center (not Serviced) |
|
- | |||||
| NI | 98004294 | Wire Tie, Insulation |
|
- | |||||
| NI | W11684778 | Insulation, Bottom (Replaces: W10177346) |
|
- | |||||
| NI | W11684896 | Insulation, Back (Replaces: W10137234) |
|
- | |||||
| NI | W11684895 | Insulation, Wrap (Replaces: W10206735) |
|
- | |||||
| NI | W11684784 | Insulation, Top (Replaces: W10207891) |
|
- |
