01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts

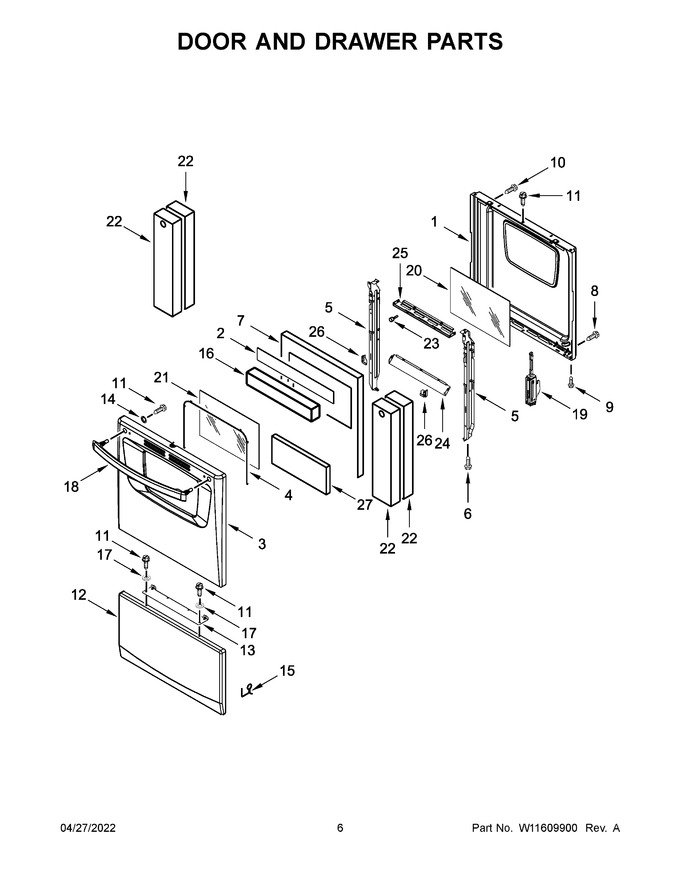

04 - Door And Drawer Parts


05 - Backguard Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11501954		Liner, Door		Appelez-nous	-
2	W11513373		Retainer, Upper Insulation		Appelez-nous	-
3	W11501931		Panel, Outer Door (white)		Appelez-nous	-
4	W11522387		Seal, Oven			Immediately	$ 31.24
5	98004564		Retainer (right Hand)		Appelez-nous	-
6	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
7	W11688807		Insulation, Door   (Replaces: W10212696)		Appelez-nous	-
8	W11206744		Screw   (Replaces: 98008699)				$ 12.20
9	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 6.98
10	WP8533842		Screw   (Replaces: 8533842)				$ 6.26
11	3196166		Screw (white)   (Replaces: 98006727)				$ 6.31
12	98009307		Door, Broil		Appelez-nous	-
13	W10208117		Bracket, Panel		Appelez-nous	-
14	WP98004650		Nut, Push   (Replaces: 98004650)				$ 6.26
15	6610364		Clip, Door				$ 10.14
16	W11502239		Insulation, Door		Appelez-nous	-
17	W10216805		Washer		Appelez-nous	-
18	WP98004947		Handle, Door (white)   (Replaces: 98004947)				$ 127.54
19	98017873		Hinge, Oven Door (yellow)				$ 34.24
20	WPW10201296		Glass, Inner   (Replaces: W10201296)				$ 43.61
21	WPW10168624		Glass, Outer   (Replaces: W10168624)				$ 64.05
22	W11688783		Insulation   (Replaces: W10212526)				$ 78.29
23	98004723		Bumper   (Replaces: 98004979)		Appelez-nous	-
24	98012903		Retainer, Insulation (bottom)		Appelez-nous	-
25	98004981		Retainer, Insulation (top)		Appelez-nous	-
26	98004953		Clip, Glass (right Hand)		Appelez-nous	-
27	W11688579		Insulation, Door   (Replaces: W10212525)		Appelez-nous	-
26A	98004952		Clip, Glass (left Hand)		Appelez-nous	-
5A	98004629		Retainer (left Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
