Blower Parts


Chassis Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)

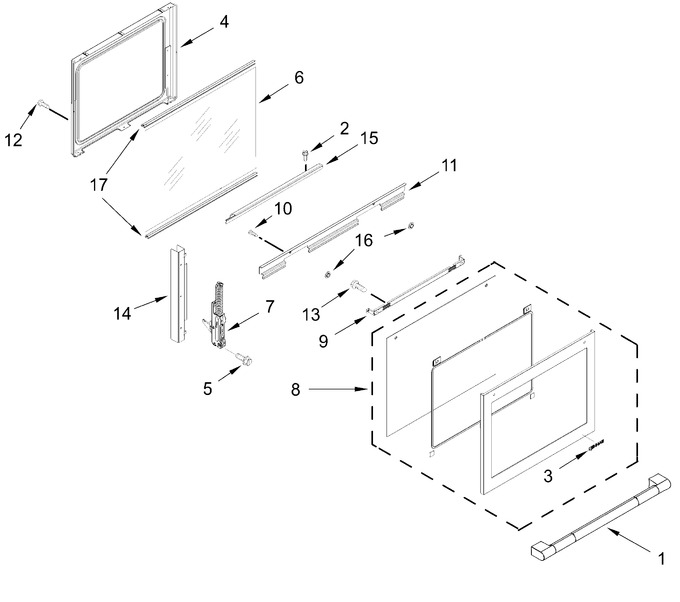

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARIB712F710141D95F65403C5767D62B7DD		Assembly, Door Handle		Appelez-nous	-
2	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
3	ARI454A5C95C970C24B3D747B01001FD13A		Badge		Appelez-nous	-
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 282.60
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	W11339500		Glass, Inner   (Replaces: W11223202)				$ 146.72
7	W11647009		Hinge, Slow Close   (Replaces: W11592970)			Immediately	$ 68.49
8	ARI9338A077E4D9378467A4A41B1EBCED1F		Assembly, Outer Door		Appelez-nous	-
9	W10541911		Bracket, Glass Upper Handle			Immediately	$ 34.22
10	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
11	W10813140		Rail, Horizontal Support			Immediately	$ 151.89
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
13	WP8533988		Screw   (Replaces: W11091878)			Immediately	$ 7.16
14	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 65.30
15	ARIFBB0673C54F73CFA5B82DA3212EC1FA2		Scoop, Door		Appelez-nous	-
16	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 12.69
17	W11673273		Glass Spacer   (Replaces: W11379948)			Immediately	$ 26.60
	W11647013		Outer Door, Assembly (stainless)   (Replaces: W11618950)				$ 377.11
	W11647008		Door Handle (stainless)   (Replaces: W11600908)			Immediately	$ 336.09
	W11025120		Scoop, Door (stainless)   (Replaces: W10551024)				$ 105.44
	W11700312		Badge (stainless)   (Replaces: W11238658)			Immediately	$ 99.89
