Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.16

2 ARIFCCD0977839128EBCD222242727905E9 Panel, Drawer Front Appelez-nous -
3 WPW10318026 Bracket, Mounting   (Replaces: W10318026) Special Order $ 33.66

4 8004P02460 Spacer, Side Panel Appelez-nous -
5 W11452957 Baffle, Drawer Panel Appelez-nous -
6 W11739957 Screw   (Replaces: W10673879) Appelez-nous -
W10602484 Panel, Drawer Front (stainless) Special Order $ 210.67


    View Diagram in Separate Window     Print Icon   Print Part List

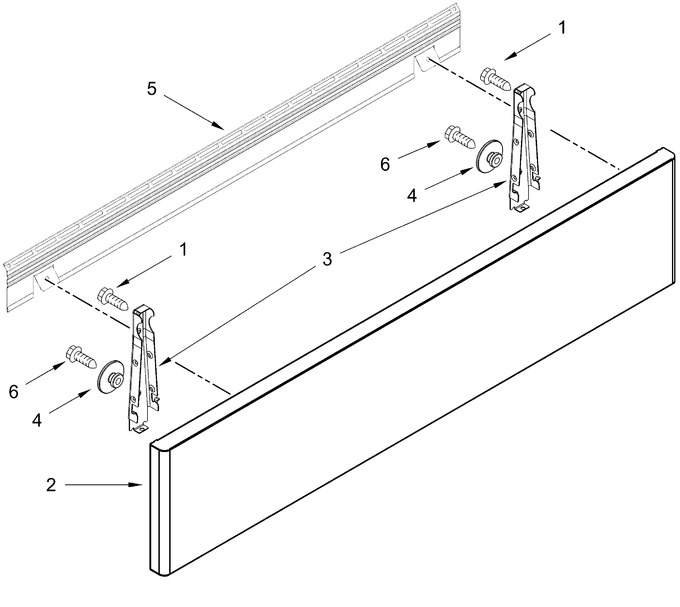

Diagram for JDS1750ML0
