Blower Parts


Chassis Parts

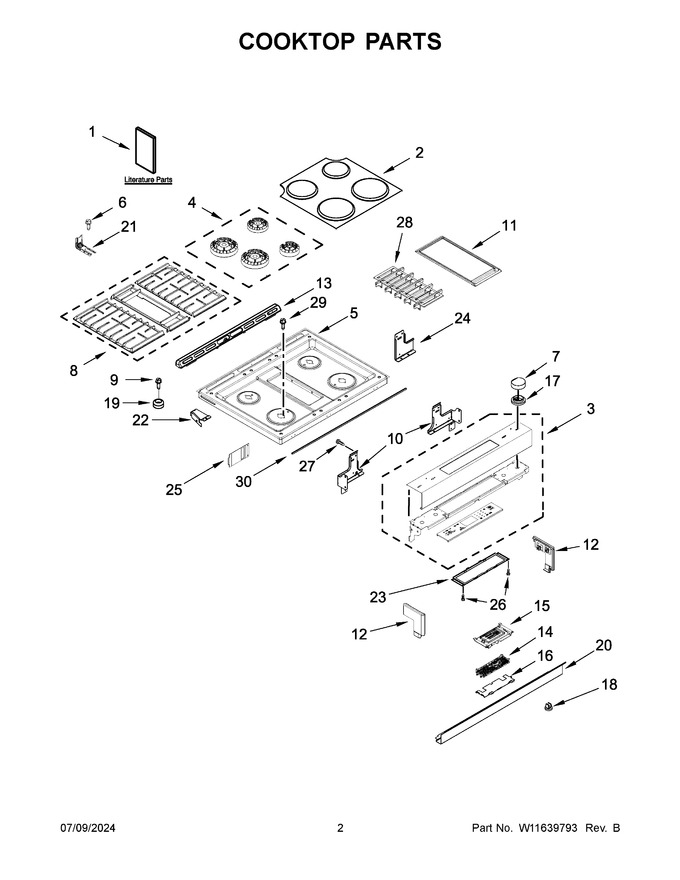

Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11602521		Owners Manual		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4)0   (Replaces: W11352138)		Appelez-nous	-
3	W11834912		Console (stainless)   (Replaces: W11606822)				$ 457.43
4	W11671543		Burner Kit (set Of 4)   (Replaces: W11600788)				$ 108.32
5	W11754708		Cooktop (stainless)   (Replaces: W11120004)				$ 520.47
6	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
7	W11647016		Knob (stainless)   (Replaces: W11592981)				$ 37.62
8	W11451474		Grate Kit (black)   (Replaces: W11382964)				$ 312.78
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
10	W10289170		Bracket,support (left)   (Replaces: W11563529)				$ 25.76
11	W10432544		Griddle			Immediately	$ 51.00
12	W10557751		Endcap (stainless (left))				$ 144.73
13	W11170796		Trim, Vent (stainless)   (Replaces: W10636529)			Immediately	$ 121.73
14	W11802926		Control, Mrc2   (Replaces: W11603774)				$ 347.23
15	W11108634		Display, Assembly   (Replaces: W10759326)				$ 505.38
16	W10558372		Bracket, Control				$ 21.51
17	W11647014		Bezel (stainless)   (Replaces: W11592977)		Appelez-nous	-
17	W11752207		Bezel (stainless)   (Replaces: W11592976)				$ 49.29
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.28
19	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 12.78
20	W10743281		Console, Lower Panel (stainless)		Appelez-nous	-
21	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
22	W10162253		Brace, Corner (left)				$ 63.54
23	W10557780		Bracket , Control				$ 31.44
24	W10598048		Bracket, Console (center)				$ 22.05
25	W11158783		Shield, Keypad		Appelez-nous	-
26	7101P42860		Screw, Handle		Appelez-nous	-
27	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
28	W10752102		Grill, Air (black)				$ 196.82
28	ARI8E3A9E7766251EE00BB00F291A050F61		Grill, Air (black)		Appelez-nous	-
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
30	W11620671		Gasket, Console And Cooktop   (Replaces: W11512127)				$ 21.53
10A	W11563527		Bracket, Support (right)		Appelez-nous	-
12A	W10557754		Endcap (stainless (right))				$ 144.73
1A	W11565454		Tech Sheet		Appelez-nous	-
1B	W11615560		Dimension Guide		Appelez-nous	-
1C	W11602534		Quick Start Guide		Appelez-nous	-
1D	W11604189		Control Guide		Appelez-nous	-
1E	W11643128		Downdraft Template   (Replaces: W10817089)				$ 12.35
22A	W10162252		Brace, Corner (right)				$ 67.37
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W11175842		Suppressor   (Replaces: W10653092)			Immediately	$ 94.54
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11451578		Harness, Main		Appelez-nous	-
NI	W11198274		Harness, Down Draft Fan Jumper				$ 100.91
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
