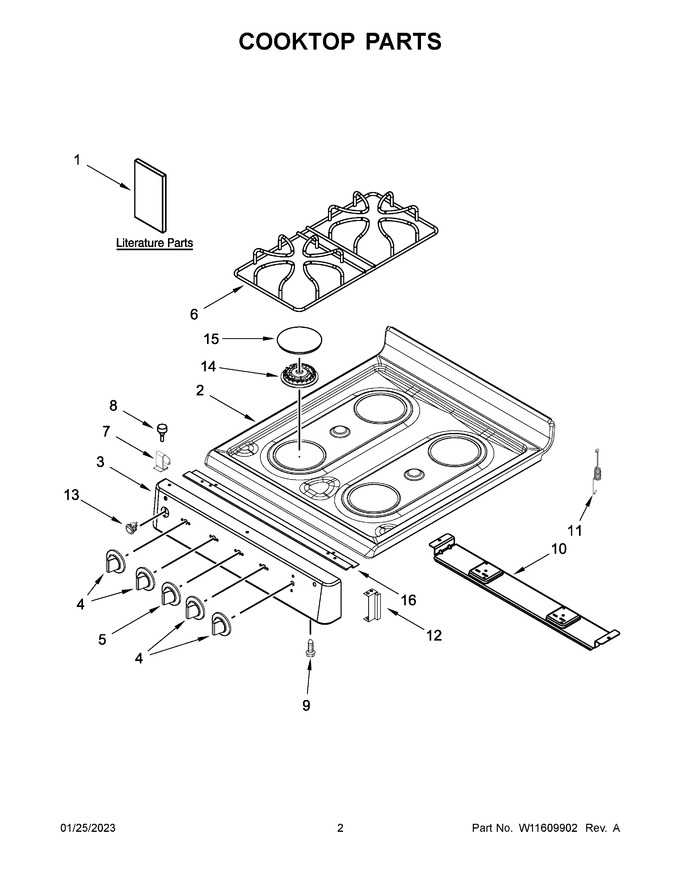

02 - Cooktop Parts


03 - Backguard Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Oven Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11603122		Installation Instructions		Appelez-nous	-
2	WPW10179560		Cooktop (white)   (Replaces: W10179560)				$ 283.04
3	W10225327		Panel, Manifold (white)		Appelez-nous	-
4	W11620107		Knob, Burner (white)   (Replaces: W11511810)		Appelez-nous	-
5	WPW10483330		Knob, Thermostat (white)   (Replaces: W10483330)				$ 19.35
6	WPW10180089		Grate, Burner (black)   (Replaces: W10180089)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	W10207167		Bumper, Cooktop		Appelez-nous	-
9	W10837731		Screw   (Replaces: W10493726)				$ 7.07
10	98012912		Support, Oven Burner		Appelez-nous	-
11	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
12	W11509664		Bracket, Support Left		Appelez-nous	-
13	W11531408		Switch, Rocker (white)		Appelez-nous	-
14	WPW10243396		Burner, Standard   (Replaces: W10243396)				$ 81.38
15	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
16	W11561789		Z Bracket, Manifold		Appelez-nous	-
12A	W11509665		Bracket, Support Right		Appelez-nous	-
1A	W11508818		Use And Care Guide		Appelez-nous	-
1B	W11565447		Sheet, Tech		Appelez-nous	-
1C	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
NI	NP		(parts Not Shown)		Appelez-nous	-
NI	W11562248		Harness, Switch		Appelez-nous	-
NI	W10914404		Harness, Main		Appelez-nous	-
NI	98015022		Bushing, Snap		Appelez-nous	-
NI	3196696		Clip-harness		Appelez-nous	-
NI	3184020		Wire, Ground   (Replaces: 6610473)				$ 74.50
NI	98004294		Wire Tie, Insulation		Appelez-nous	-
NI	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
