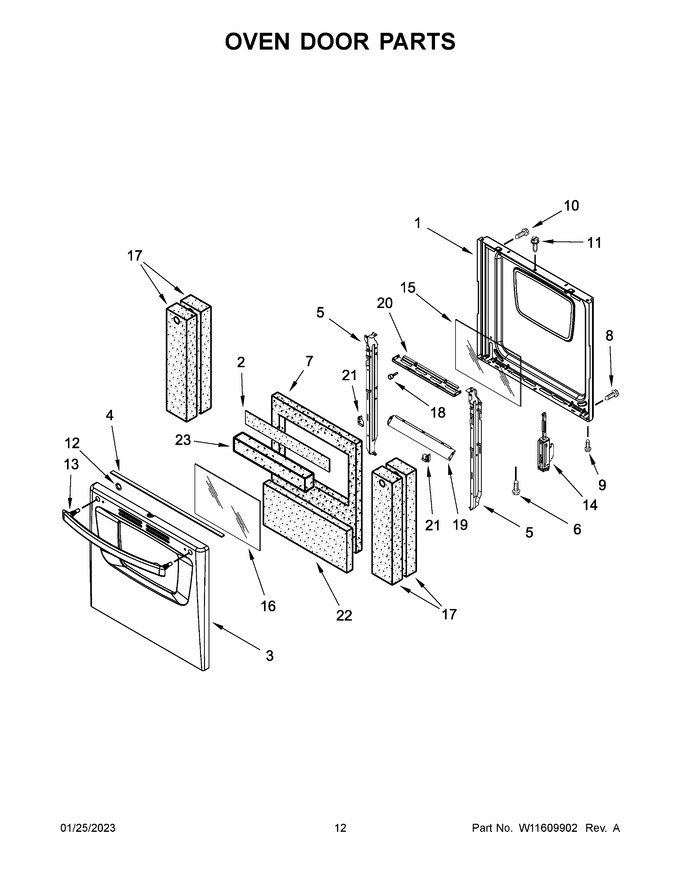

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11516166		Liner, Door		Appelez-nous	-
2	W11513373		Retainer, Upper Insulation		Appelez-nous	-
3	W11501931		Panel, Oven Door (white)		Appelez-nous	-
4	W11522388		Seal, Door		Appelez-nous	-
5	98004564		Retainer (right Hand)		Appelez-nous	-
6	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
7	W11688807		Insulation, Door   (Replaces: W10212696)		Appelez-nous	-
8	W11206744		Screw   (Replaces: 98008699)				$ 12.20
9	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 6.98
10	WP8533842		Screw   (Replaces: 8533842)				$ 6.26
11	3196166		Screw (white)   (Replaces: 98006727)				$ 6.31
12	WP98004650		Nut, Push   (Replaces: 98004650)				$ 6.26
13	WP98004947		Handle, Oven Door (white)   (Replaces: 98004947)				$ 127.54
14	98017873		Hinge, Oven Door (yellow)				$ 34.24
15	WPW10201296		Glass, Inner   (Replaces: W10201296)				$ 43.61
16	WPW10168624		Glass, Outer   (Replaces: W10168624)				$ 64.05
17	W11688783		Insulation   (Replaces: W10212526)				$ 78.29
18	98004723		Bumper   (Replaces: 98004979)		Appelez-nous	-
19	98012903		Retainer, Insulation (bottom)		Appelez-nous	-
20	98004981		Retainer, Insulation (top)		Appelez-nous	-
21	98004952		Clip, Glass (left Hand)		Appelez-nous	-
22	W11688579		Insulation, Door   (Replaces: W10212525)		Appelez-nous	-
23	W11502239		Insulation, Door		Appelez-nous	-
21A	98004953		Clip, Glass (right Hand)		Appelez-nous	-
5A	98004629		Retainer (left Hand)		Appelez-nous	-
