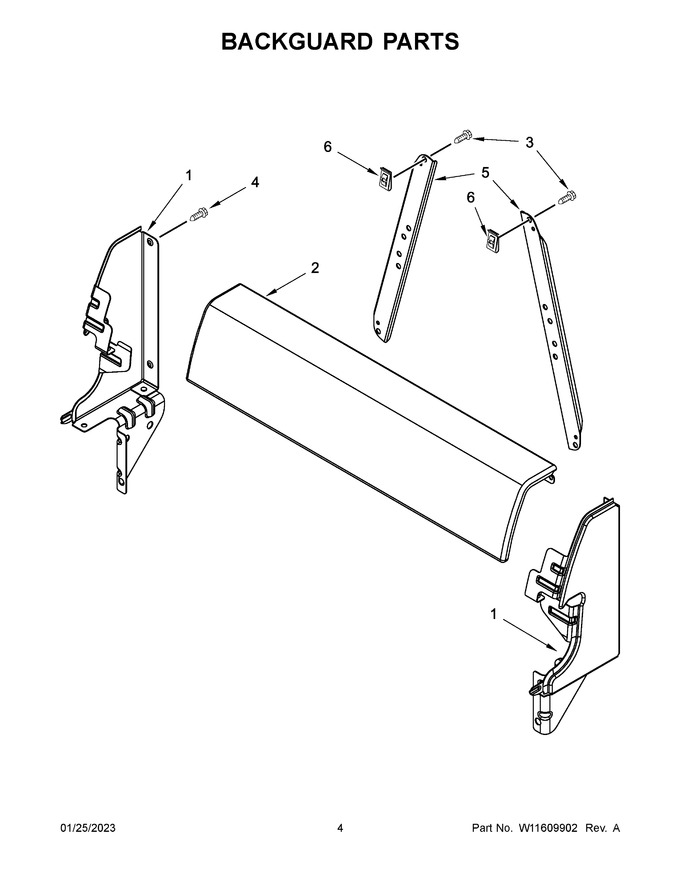

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10144828		Endcap (white Left Hand)		Appelez-nous	-
2	W10208451		Panel, Backguard (white)		Appelez-nous	-
3	W10837731		Screw   (Replaces: W10493726)				$ 7.07
4	WP3400805		Screw   (Replaces: 98015526)				$ 6.47
5	W10145101		Support, Backguard		Appelez-nous	-
6	98009179		U-nut				$ 12.02
1A	W10144829		Endcap (white Right Hand)		Appelez-nous	-
