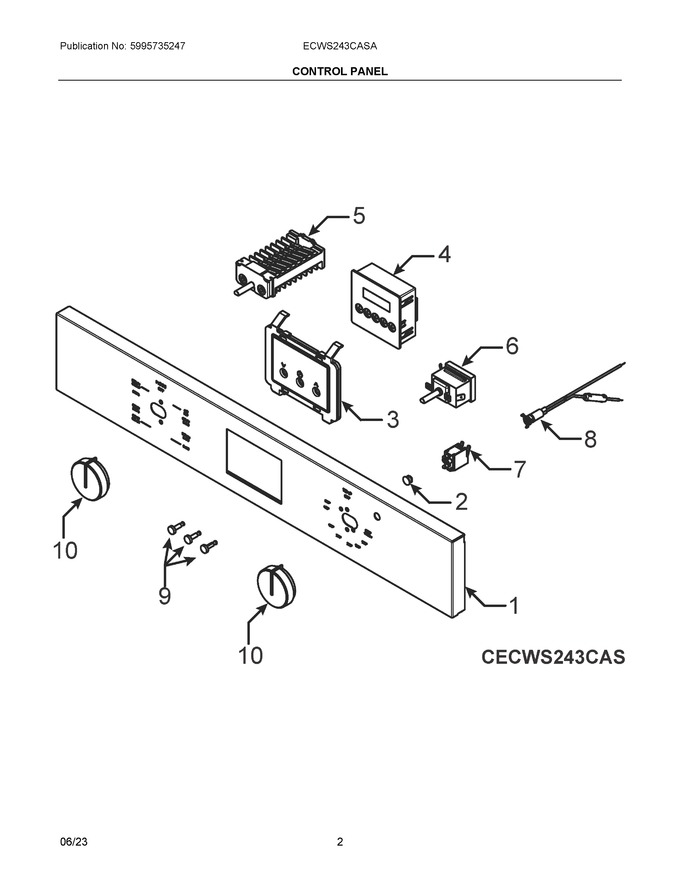

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533564 | Control Panel, Assembly, Stainless |
|
- | |||||
| 2 | 318044511 | Lens, Indicator Light |
|
Immediately | $ 25.66 | ||||
| 3 | 5304533565 | Lens Assembly, Black, Control |
|
$ 345.93 | |||||
| 4 | A02169805 | Pc Board, Assembly, User Interface |
|
$ 334.33 | |||||
| 5 | 5304533566 | Switch Assembly, Oven Selector |
|
$ 117.94 | |||||
| 6 | 5304533567 | Thermostat, Temperature, Oven |
|
- | |||||
| 7 | 318369501 | Lamp, Indicator |
|
Immediately | $ 67.62 | ||||
| 8 | 140174296016 | Lamp, Signal, 250v 200/200 |
|
- | |||||
| 9 | 3425573452 | Button, Control |
|
- | |||||
| 10 | 140159332026 | Knob Assembly, Chrome |
|
- | |||||
| 8A | 140174296024 | Lamp, Signal, 250v 600/200 |
|
- |
