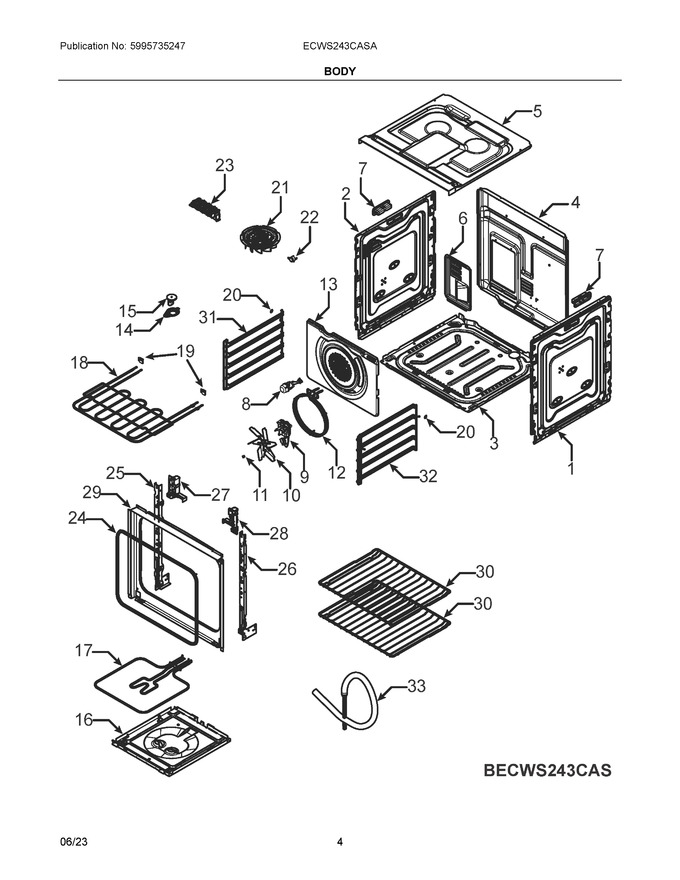

SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4055548632		Panel, Side, Rh		Appelez-nous	-
2	4055548590		Panel, Side, Lh		Appelez-nous	-
3	4055548582		Panel, Oven, Bottom		Appelez-nous	-
4	4055549341		Panel, Oven Back		Appelez-nous	-
5	4055548624		Panel, Oven, Top		Appelez-nous	-
6	5304533562		Cover, Access, Terminal Block		Appelez-nous	-
7	5304533563		Handle, Oven Moving		Appelez-nous	-
8	5304533411		Lamp, Halogen, G9 40w 120v   (Replaces: 5304533556)			Immediately	$ 36.50
9	5304533557		Motor, Fan, Convection				$ 96.69
10	4055548913		Blade, Convection Fan		Appelez-nous	-
11	4055549481		Nut, Fan Blade		Appelez-nous	-
12	5304533558		Element, Convection		Appelez-nous	-
13	4055548855		Cover, Convection Fan		Appelez-nous	-
14	140292558016		Cover, Element Latch   (Replaces: 4055549440)		Appelez-nous	-
15	140292558016		Latch, Element Support   (Replaces: 4055549432)		Appelez-nous	-
16	4055549465		Cover, Bake Element		Appelez-nous	-
17	5304533559		Element, Oven Bake		Appelez-nous	-
18	5304533560		Element, Grill Boost, Broil		Appelez-nous	-
19	4055548723		Clip, Element Mtg.		Appelez-nous	-
20	5614852019		Clip, Side Rails		Appelez-nous	-
21	5304533561		Fan Assembly, Cooling			Immediately	$ 153.80
22	4055548715		Thermostat, Cutout, 190 Deg		Appelez-nous	-
23	5304533568		Terminal Block		Appelez-nous	-
24	4055548574		Seal, Oven Door				$ 156.21
25	140233526015		Channel, Body Side, Lh Front		Appelez-nous	-
26	140233526023		Channel, Body Side, Rh Front		Appelez-nous	-
27	4055548517		End Cap, Control Support, Lh		Appelez-nous	-
28	4055548525		End Cap, Control Support, Rh		Appelez-nous	-
29	8588082212040		Frame, Front, Black		Appelez-nous	-
30	4055549770		Rack, Oven Shelf				$ 142.42
31	140109276026		Side Rail, Oven Rack, Lh		Appelez-nous	-
32	140109276018		Side Rail, Oven Rack, Rh		Appelez-nous	-
33	5304533573		Harness Assembly, Box & Cable		Appelez-nous	-
22A	140064215019		Thermostat, Cutout, 145 Deg.				$ 34.78
NI	4055470712		Bumper, Stop, Black		Appelez-nous	-
NI	140071555019		Kit, Cabinet Install		Appelez-nous	-
