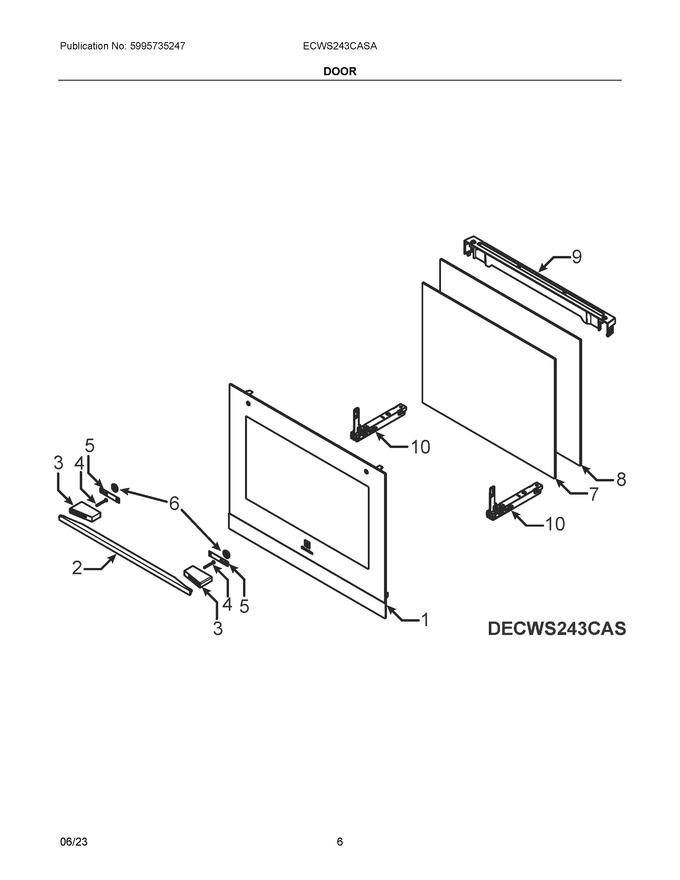

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533569		Door Assembly, Outer, Black, W/stainlss Trim			Immediately	$ 287.02
2	5304533570		Handle, Oven Door, Stainless		Appelez-nous	-
3	140075719025		Spacer, Handle, Stainless		Appelez-nous	-
4	5304533571		Screw, Ph Tx20, M4 X 35, Black, Handle Mtg.		Appelez-nous	-
5	140100688013		Pad, Handle Spacer		Appelez-nous	-
6	140126193014		Spacer, Door, Inner		Appelez-nous	-
7	4055577151		Glass, Door, Middle				$ 338.36
8	4055549143		Glass, Inner, Oven Side				$ 190.18
9	5304533572		Trim, Door, Top Cap		Appelez-nous	-
10	140199792122		Hinge, Oven Door				$ 82.36
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
