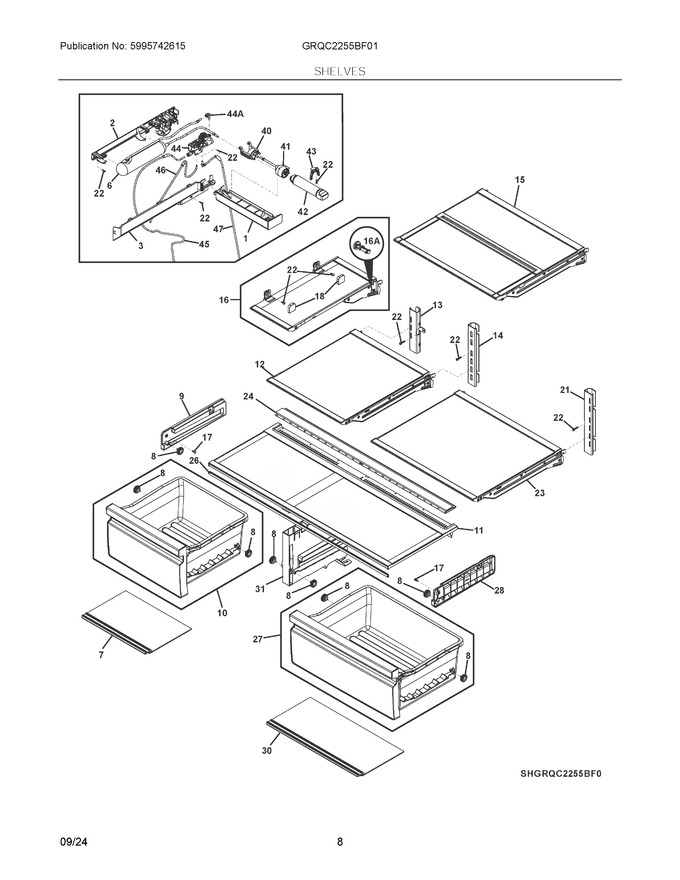

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533262 | Cover, Water Filter, Grey |
|
$ 28.39 | |||||
| 2 | 5304529601 | Support, Water Valve, & Tank |
|
$ 21.99 | |||||
| 3 | 140050808090 | Cover, Water Tank (Replaces: 5304533507) |
|
- | |||||
| 6 | 5304523037 | Tank, Water, Disp Reservoir |
|
$ 179.78 | |||||
| 7 | 5304519123 | Cover, Mullion Storage, Glass, Lh |
|
$ 35.74 | |||||
| 8 | 5304519124 | Roller, Crisper Glide |
|
$ 16.84 | |||||
| 9 | 5304519125 | Rail, Crisper, Lh Side |
|
- | |||||
| 10 | 140047692417 | Drawer Assembly, Crisper, Lh, W/rollers (Replaces: 5304526852) |
|
- | |||||
| 11 | 5304531895 | Cover Assembly, Crisper, W/glass |
|
$ 102.02 | |||||
| 12 | 5304523041 | Shelf Assembly, Cantilever, Glass, Lh |
|
$ 285.15 | |||||
| 13 | 5304519129 | Bracket, Cantilever Shlf, Lh |
|
- | |||||
| 14 | 5304519130 | Bracket, Cantilever Shlf, Center |
|
$ 52.45 | |||||
| 15 | 5304523044 | Shelf Assembly, Cantilever, Glass, Upper |
|
$ 248.94 | |||||
| 16 | 5304523045 | Shelf Assembly, Flip Up, Glass, Lh |
|
$ 317.66 | |||||
| 17 | 241641505 | Screw, Hilo Phil Pn, .5", White |
|
- | |||||
| 18 | 5304519133 | Cover, Screw, Small |
|
$ 8.19 | |||||
| 21 | 5304519136 | Bracket, Cantilever Shlf, Rh |
|
$ 53.87 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 23 | 5304523047 | Shelf Assembly, Cantilever, Glass, Rh |
|
$ 281.36 | |||||
| 24 | 5304523048 | Housing Assembly, Auto Humidity, W/membrane |
|
$ 65.98 | |||||
| 26 | 5304519140 | Gasket, Crisper Cover |
|
Immediately | $ 23.98 | ||||
| 27 | 140047692425 | Drawer Assembly, Crisper, Rh, W/rollers (Replaces: 5304526851) |
|
- | |||||
| 28 | 5304519142 | Rail, Crisper, Rh Side |
|
$ 19.72 | |||||
| 30 | 5304519143 | Cover, Mullion Storage, Glass, Rh |
|
Immediately | $ 46.17 | ||||
| 31 | 5304532661 | Divider, Crisper Cover |
|
$ 60.67 | |||||
| 40 | 5304531743 | Guide, Filter Manifold |
|
$ 3.95 | |||||
| 41 | 5304533202 | Manifold, Water Filter, W/water Line, To Main Valve (Replaces: 5304522682) |
|
Immediately | $ 45.55 | ||||
| 42 | EPTWFU01 | Cs6 Wter Fltr, Frig Ps Ultra Ii |
|
Immediately | $ 75.59 | ||||
| 43 | 5304519148 | Holder, Water Filter |
|
$ 10.85 | |||||
| 44 | 5304523052 | Water Valve, Assembly, Triple |
|
Immediately | $ 236.46 | ||||
| 45 | 5304524353 | Tubing, Valve, To Door Hinge |
|
Immediately | $ 36.05 | ||||
| 46 | 5304527422 | Tubing, Valve, To Ff Ice Maker |
|
Immediately | $ 16.23 | ||||
| 47 | 5304526817 | Tubing, Valve, To Fz Ice Maker |
|
- | |||||
| 16A | 5304523682 | Pin, Interlock, Flip Up Shelf |
|
- | |||||
| 44A | 5304523053 | Connector, Tubing, Quick Connect |
|
Immediately | $ 25.94 | ||||
| NI | 5304523029 | Screw, Trilobular, M4 X 12 |
|
- | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 5304529553 | Seal, Foam, Inlet Tube |
|
- | |||||
| NIA | 5304533519 | Elbow, Tube, Water Tank |
|
$ 5.86 |
