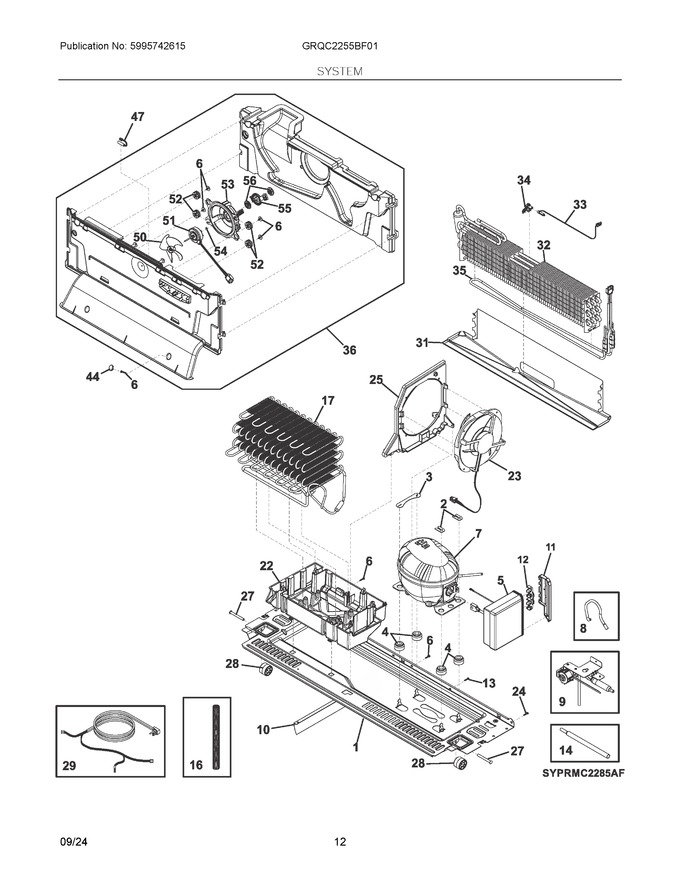

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304519151 | Base, Compressor Assy |
|
$ 131.96 | |||||
| 2 | 5304519152 | Clamp, Compressor, Single Hole |
|
- | |||||
| 3 | 5304533505 | Clamp, Compressor, 2 Hole |
|
- | |||||
| 4 | 811978901 | Grommet, Compressor |
|
- | |||||
| 5 | 5304523061 | Control Assembly, Flex Drive |
|
Immediately | $ 342.38 | ||||
| 6 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 7 | 5304523062 | Compressor, Assembly, Vnd1113y |
|
Immediately | $ 771.31 | ||||
| 8 | 5304526794 | Tube, Suction |
|
Immediately | $ 40.60 | ||||
| 9 | 5304529531 | Step Valve, Assembly, W/filter Drier |
|
Immediately | $ 186.52 | ||||
| 10 | 5304523064 | Flap Bracket, Compressor Base |
|
- | |||||
| 11 | 5304533517 | Cover, Flex Drive, Side, Compressor |
|
- | |||||
| 12 | 5304526793 | Clamp, Flex Drive, Cable |
|
$ 9.10 | |||||
| 13 | 5304519110 | Screw, Trilob, M3 X 6 |
|
$ 3.03 | |||||
| 14 | 5304523065 | Tubing, Extra, Refrigerant |
|
$ 16.07 | |||||
| 15 | 5304526800 | Support, Foam, Rh, Evaporator |
|
- | |||||
| 16 | 5304519156 | Drain Tube, Corrugated |
|
$ 6.07 | |||||
| 17 | 5304538286 | Condenser Assembly, Dynamic (Replaces: 5304519157) |
|
Immediately | $ 190.51 | ||||
| 18 | 5304526809 | Heater Assembly, Frzr, Lh Side |
|
- | |||||
| 19 | 5304526807 | Cover Assembly, Frzr Air Flow, Lh Side, W/fan-heater |
|
- | |||||
| 20 | 5304526808 | Backplate, Fan Shroud |
|
- | |||||
| 21 | 5304526805 | Cover, Connector, Double Im |
|
- | |||||
| 22 | 5304529527 | Drain Pan, Condenser |
|
$ 29.65 | |||||
| 23 | 5304525730 | Fan Assembly, Condenser |
|
$ 104.10 | |||||
| 24 | 808199001 | Screw, Self Tapping, 6 X 20 |
|
$ 7.09 | |||||
| 25 | 5304529530 | Shroud, Condenser Fan |
|
$ 16.74 | |||||
| 27 | 811998302 | Shaft, Cabinet Roller |
|
$ 10.62 | |||||
| 28 | 811666601 | Roller, Cabinet |
|
$ 9.10 | |||||
| 29 | 5304538934 | Power Cord, Electric (Replaces: 5304523066) |
|
$ 55.38 | |||||
| 30 | 5304519172 | Cover, Window, Middle Drawer |
|
$ 11.17 | |||||
| 31 | 5304526797 | Tray, Evap Drain |
|
- | |||||
| 32 | 5304526798 | Evaporator, Assembly, Freezer |
|
$ 178.01 | |||||
| 33 | 5303918851 | Thermostat Kit, Defrost, W/connectors |
|
Immediately | $ 36.75 | ||||
| 34 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 811980402) |
|
$ 4.19 | |||||
| 35 | 5304526799 | Heater, Defrost, Evaporator |
|
- | |||||
| 36 | 5304526802 | Cover Assembly, Evaporator, Freezer, W/fan Assy |
|
- | |||||
| 37 | 5304526806 | Damper, Heated |
|
- | |||||
| 38 | 5304523686 | Seal, Baffle Assembly |
|
$ 32.96 | |||||
| 44 | 5304524004 | Cover, Screw Hole, White |
|
Immediately | $ 5.07 | ||||
| 51 | 5304536608 | Fan Assembly, Evaporator (Replaces: 5304526804) |
|
$ 111.33 | |||||
| 53 | 5304526803 | Plate, Fan Mounting |
|
- | |||||
| 65 | 5304519183 | Washer, Flat |
|
- | |||||
| 15A | 5304526801 | Support, Foam, Lh, Evaporator |
|
$ 14.89 | |||||
| NI | 811950601 | Seal, 6x8, Foam Tape, 154" Roll |
|
- | |||||
| NIA | 5304529528 | Foam Insulation, Dyco Tube |
|
- | |||||
| NIA | 5304532654 | Screw, Flex Drive, 4*10 Hi Lo |
|
- | |||||
| NIA | 5304529529 | Grommet, Dyco Tube |
|
- |
