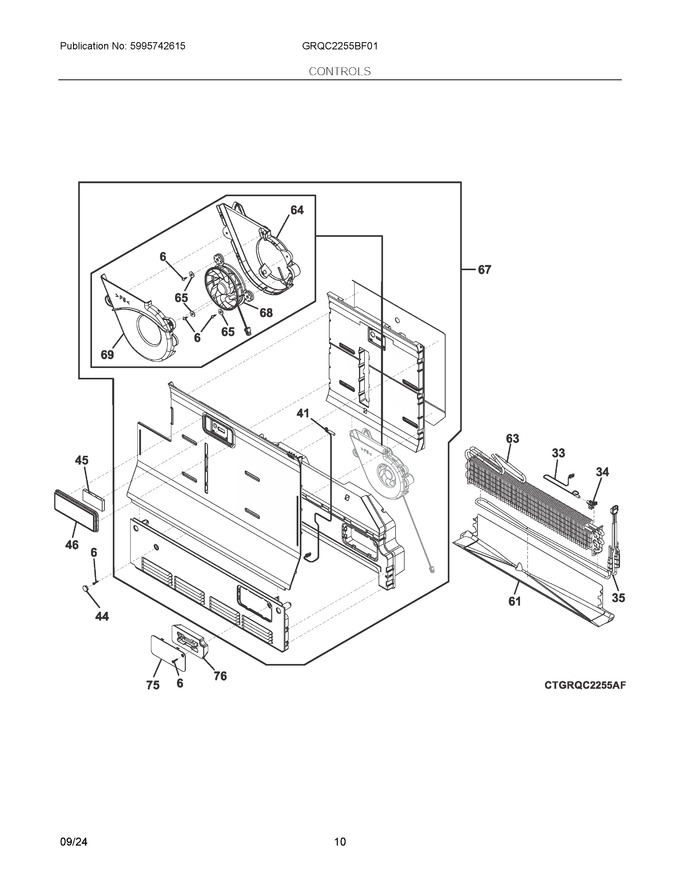

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811949503		Screw, Truss, 4.2 X 13				$ 3.03
33	5304519628		Defrost Sensor, Assembly		Appelez-nous	-
34	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
35	140159197049		Heater, Defrost, Evaporator   (Replaces: 5304523054)				$ 103.24
41	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
44	5304524004		Cover, Screw Hole, White			Immediately	$ 5.07
45	PAULTRA2		Pure Air Ultra 2 Air Filter, 8			Immediately	$ 42.18
46	5304526814		Cover, Air Filter, Stainless, Fresh Food		Appelez-nous	-
61	5304519180		Drain Trough, Evaporator, Fresh Food		Appelez-nous	-
63	5304526811		Evaporator, Assembly, Fresh Food			Immediately	$ 168.00
64	5304526813		Plate, Fan Mounting, Fresh Food		Appelez-nous	-
65	5304519183		Washer, Flat		Appelez-nous	-
67	5304524898		Cover Assembly, Air Duct, Fresh Food, Complete			Immediately	$ 203.73
68	5304536608		Fan Assembly, Evaporator   (Replaces: 5304526804)				$ 111.33
69	5304526812		Housing, Fan, Fresh Food		Appelez-nous	-
75	5304519189		Cover, Window, Fresh Food		Appelez-nous	-
76	5304522062		Insulation, Window, Eps, Fresh Food		Appelez-nous	-
NI	811950601		Seal, 6x8, Foam Tape, 154" Roll		Appelez-nous	-
