Control Panel And Separator Parts


Door Parts


Lower Cabinet And Front Panel Parts


Optional Parts (not Included)


Upper And Lower Bulkhead Parts


Upper Cabinet And Front Panel Parts

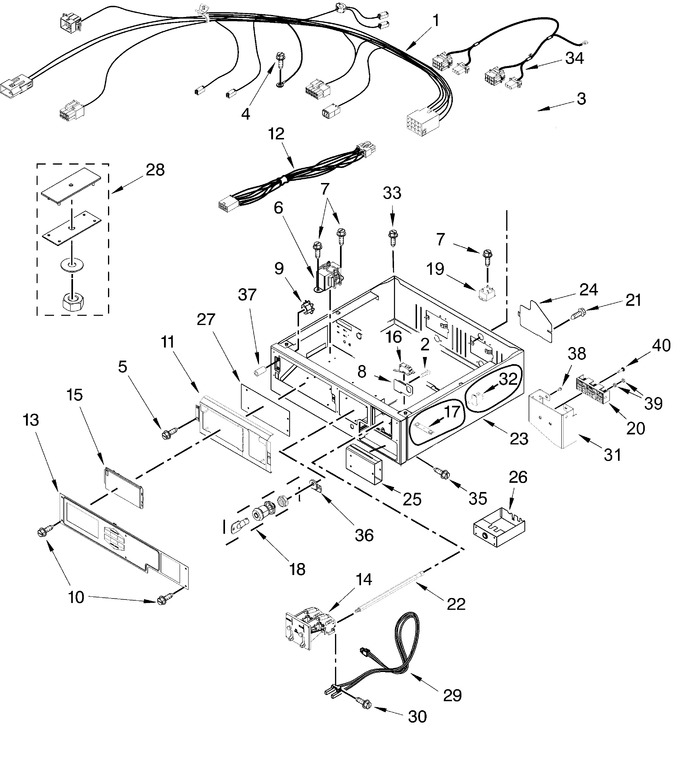

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807487		Harness, Collar (includes Motor Relay)		Appelez-nous	-
2	3400408		Screw		Appelez-nous	-
3	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 5.55
4	W10850756		Screw   (Replaces: W10773242)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	WPW10133285		Transformer 120 - 22.5 Vac   (Replaces: W10133285)				$ 184.03
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	W10160652		Bracket-switch		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	W10111027		Jumper, Transformer				$ 41.23
13	W11759235		Console   (Replaces: W11651080)		Appelez-nous	-
14	W11643135		Assembly, Dual Coin Drop   (Replaces: W10198395)				$ 512.07
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 37.08
17	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
18	W11191256		Assembly, Lock Access Door   (Replaces: W10899602)				$ 32.33
19	W10827406		Relay, Motor		Appelez-nous	-
20	W11690172		Terminal-block   (Replaces: W10237321)				$ 340.88
21	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.04
22	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 73.17
23	W11743896		Collar   (Replaces: W11455498)		Appelez-nous	-
24	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
25	W11204020		Assembly, Vault Body   (Replaces: W11109083)				$ 361.48
26	W11204019		Box, Coin   (Replaces: W11109086)				$ 140.45
27	W11743892		Control Board   (Replaces: W11582595)		Appelez-nous	-
28	W11416034		Kit, Coin Box Security   (Replaces: W10169579)				$ 113.40
29	WPW10247389		Coin Optic Sensor Assembly (white)   (Replaces: W10247389)			Immediately	$ 104.31
30	WP3395530		Screw   (Replaces: W10142655)				$ 6.93
31	W10192090		Bracket, Terminal Block				$ 92.91
32	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 21.52
33	WP33001882		Screw   (Replaces: 337686)				$ 71.75
34	W10807493		Jumper, Lower To Collar		Appelez-nous	-
35	3400500		Bolt			Immediately	$ 12.03
36	W11165684		Cam, Locking   (Replaces: W10913660)				$ 8.20
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	WP3388228		Screw   (Replaces: 3388228)				$ 6.26
39	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
40	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
	W10247388		Coin Optic Sensor Assembly (black)		Appelez-nous	-
