| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

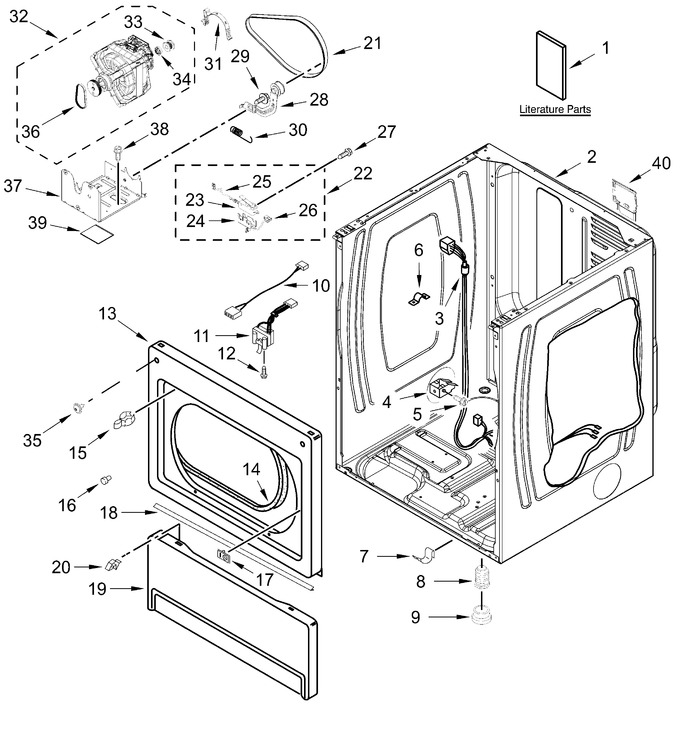

| 1 | ARIF3B42C015092609901FE1334C9EA977A | Literature Parts (located Behind Toe Panel) |
|
- | |||||
| 2 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 377.29 | |||||
| 3 | W10807486 | Harness, Upper/lower |
|
- | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 5 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 6 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 7 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | W11325273 | Boot, Foot |
|
- | |||||
| 10 | 8283298 | Jumper, Door Switch |
|
$ 75.36 | |||||
| 11 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 50.08 | ||||
| 12 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 13 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 245.28 | |||||
| 14 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 15 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 18.89 | ||||
| 16 | 693152 | Bumper |
|
$ 9.86 | |||||
| 17 | W10521429 | Cover Strike (white) |
|
- | |||||
| 18 | W10576519 | Seal, Deflector |
|
- | |||||
| 19 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 20 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 21 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 22 | W11247665 | Switch, Assembly (Replaces: W11233966) |
|
$ 23.76 | |||||
| 23 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 89.24 | |||||
| 24 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 23.76 | |||||
| 25 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 26 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 27 | WP98129 | Screw (Replaces: 98129) |
|
$ 6.80 | |||||
| 28 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 81.06 | ||||
| 29 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 30 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 22.11 | ||||
| 31 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 32 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10918085) |
|
Immediately | $ 371.89 | ||||
| 33 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 34 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 35 | W10879744 | Screw |
|
- | |||||
| 36 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 37 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 38 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 39 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 19.96 | |||||
| 40 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 377.29 | |||||
| W10470674 | Kit, 4-way Venting |
|
Immediately | $ 68.99 | |||||
| ARI49056CBCEA95B374289EE824637D0633 | Dryer Exhaust Kit Not Included |
|
- | ||||||
| W11647897 | Installation Instructions |
|
- | ||||||
| W11651037 | Tech Sheet |
|
- |
