SELECT A DIAGRAM

Control Panel And Separator Parts


Door Parts


Lower Cabinet And Front Panel Parts


Optional Parts (not Included)


Upper And Lower Bulkhead Parts


Upper Cabinet And Front Panel Parts

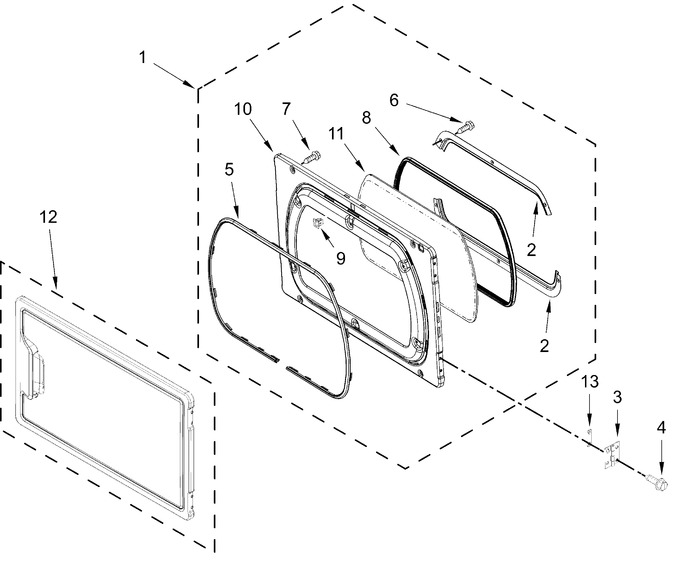

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11652037		Assembly, Inner Door (white)   (Replaces: W10513690)				$ 179.06
2	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 15.44
3	WPW10279703		Assembly, Hinge And Pin (silver)   (Replaces: W10279703)				$ 65.00
4	WP488627		Screw   (Replaces: 342055)				$ 6.81
5	WPW10354795		Seal, Door   (Replaces: W10354795)				$ 111.53
6	WP3373329		Screw   (Replaces: 3393258)				$ 6.91
7	WPW10273971		Screw   (Replaces: W10192860)			Immediately	$ 6.47
8	W11676508		Seal, Window   (Replaces: W10284122)				$ 24.32
9	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.00
10	W10822056		Inner Door (white)   (Replaces: W10470571)				$ 187.83
11	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 225.95
12	WPW10284127		Assembly, Door Outer (white)   (Replaces: W10284127)				$ 190.58
13	W10191265		Plug, Hinge (white)				$ 39.85

    View Diagram in Separate Window       Print Part List
