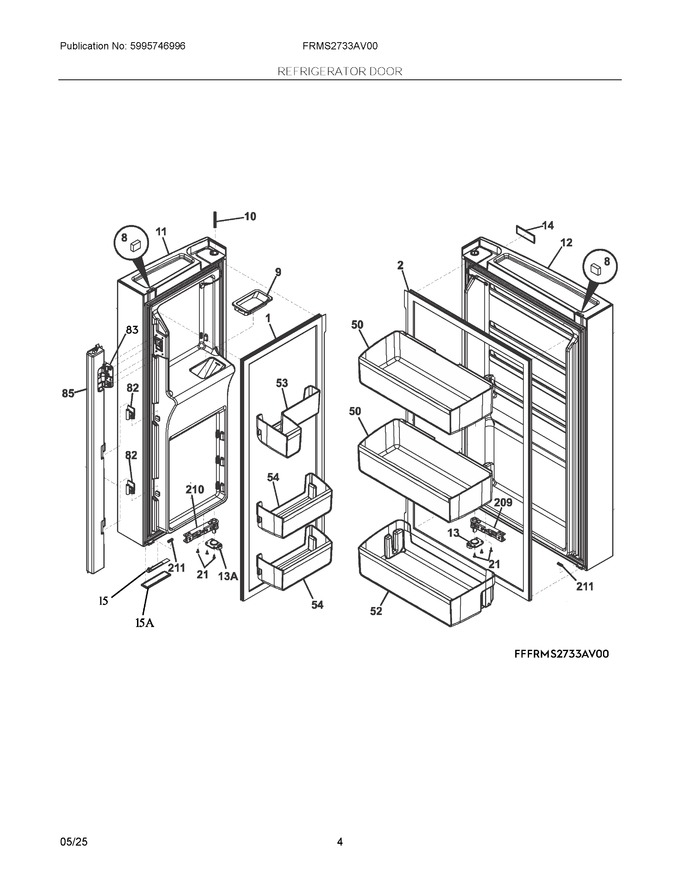

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529569		Gasket, Door, Lh Fresh Food				$ 189.73
2	5304529576		Gasket, Door, Rh Fresh Food				$ 191.14
8	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
9	5304526838		Frame, Ice Chute		Appelez-nous	-
10	5304519067		Spring, Tube Protection			Immediately	$ 10.62
11	5304538937		Door Assembly, Outer, Stainless Steel, Lh, Fresh Food			Immediately	$ 402.72
12	5304538942		Door Assembly, Outer, Stainless Steel, Rh, Fresh Food				$ 304.17
13	5304519070		Stop, Assembly, Rh Door				$ 14.41
14	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 47.03
15	5304523011		Light Board, 3 Led Cluster, 6500k			Immediately	$ 48.85
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
50	5304538953		Bin, Flex, Full Width, Right Door		Appelez-nous	-
52	5304538952		Bin, Bottle, Bottom, Right Door		Appelez-nous	-
53	5304538951		Bin, Fixed, Ice Chute, Left Door, Small		Appelez-nous	-
54	5304538950		Bin, Lug-fixed, Lh Door		Appelez-nous	-
82	5304519080		Hinge, Flip Mullion, Bottom/middle			Immediately	$ 11.42
83	5304538938		Hinge, Flip Mullion, Upper		Appelez-nous	-
85	5304519081		Mullion Assembly, Flip, W/heater			Immediately	$ 158.86
209	140040569018		Closer Assembly, Door, Rh				$ 81.41
210	140040569026		Closer Assembly, Door, Lh				$ 81.37
211	5304519083		Bumper, Door, Bottom		Appelez-nous	-
13A	5304519071		Stop, Assembly, Lh Door				$ 14.46
15A	5304526839		Lens, Single Light, White			Immediately	$ 9.10
NI	5304532660		Alignment Kit, Door Adjustment		Appelez-nous	-
NIA	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
NIB	5304531674		Heater, Flip Mullion			Immediately	$ 141.21

    View Diagram in Separate Window       Print Part List
